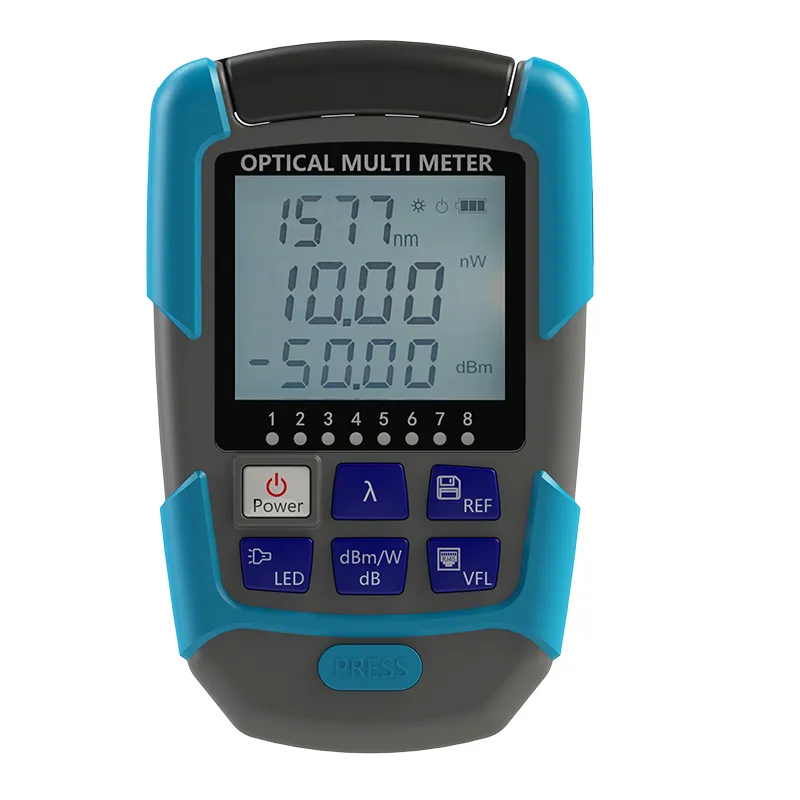

Mini Optical Power Meter
JW6201

Mini Optical Power Meter

This compact optical power meter offers portable and efficient solutions for a wide range of applications, including optical fiber communication, installation, operation, maintenance, and testing. Known for its accuracy and speed, the power meter is designed with an ergonomic and durable casing, making it a preferred choice for operators, network installation teams, research institutions, and manufacturers testing optical devices.

Request a Quote
Features
  • Compatible with FC, SC, and ST connectors using a 2.5mm universal interface.
  • Built-in optical charging battery for enhanced portability.
  • Supports network cable testing for versatile use.
  • Data-saving function for easy record-keeping and analysis.
  • Supports eight calibration wavelengths for precise measurements.
  • RJ45 cable sequence testing capability.
  • Integrated LED light with a Visual Fault Locator (VFL) for quick and effective troubleshooting.
Specifications
Optical Power Meter (OPM)
Wavelength Range 800 to 1700nm, 400 to 1100nm
Detector Type InGaAs/Si
Interface Type 2.5 universal connector
Power Measurement Range -70 to +6dBm -50 to +26dBm
Uncertainty ±5%
Standard Wavelength 850/1270/1300/1310/1490/1550/1577/1625nm
Display Resolution Logarithmic display: 0.01dBm
Frequency Identification 270Hz/1kHz/2kHz
Visual Fault Locator (VFL)
Wavelength 650nm
Output Power 15mW
Modulation Frequency CW/2Hz
Interface Type 2.5 universal connector
RJ45 Sequence
Test Mode Test the sequence of network cables
General
Power Supply 2*AAA batteries/3.7V 800mAh lithium batteries (optional)
Port Type C
Automatic Shut-off 10min
Operating Temperature 10 to +50℃
Storage Temperature 40 to +70℃
Relative Humidity 0 to 95% RH
Dimensions 110×68×30mm
Weight 140g
