Polarity Testing
MPO/MTP Polarity Analyser
MPO/MTP Polarity Analyser MPO/MTP Polarity Analyser MPO/MTP Polarity Analyser MPO/MTP Polarity Analyser
JW8204A/S

MPO/MTP Polarity Analyser

Fiber polarity tester for testing the polarity of MTP/MPO cable assemblies

This polarity analyser is designed to determine polarity and test cable assemblies during the production of MPO/MTP cables. With one-touch automatic scanning, it quickly indicates cable continuity, polarity (sequence), alarms, and error analysis. It provides a fast, accurate, and efficient polarity testing solution for MPO/MTP cable production, semi-finished product testing, and finished product inspection.

Request a Quote
Features
  • Compatible with 12, 16, 24, 32, 36, 48-fibre, and other custom fiber cables
  • Supports fiber cores of 9/125, 50/125, and 62.5/125
  • One-touch operation with learning mode support
  • Error alarms and polarity error analysis
  • Supports pedal switch for data upload and foolproof protection features
  • Customizable polarity settings for smarter functionality

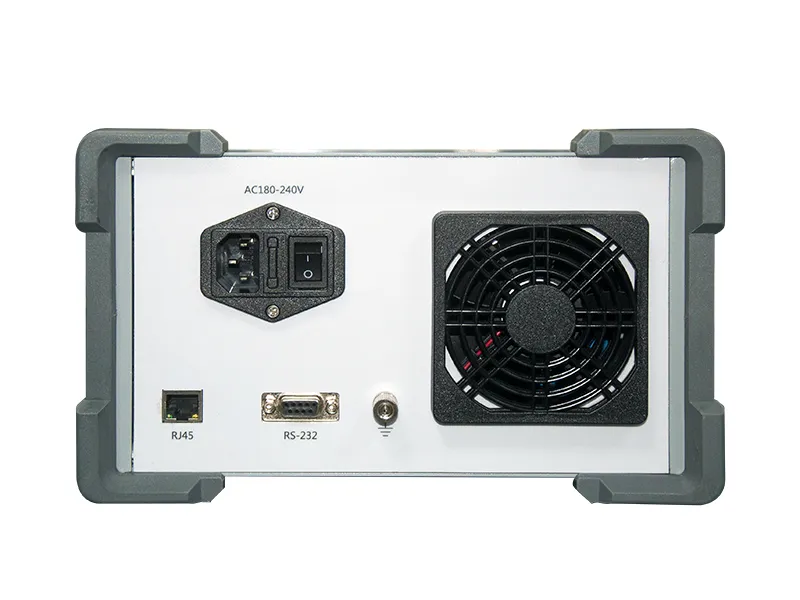

  • Equipped with RS232 communication interface and PC software application support
  • Upgraded color screen interface with multilingual support and replaceable MPO connector components (JW8204S)
  • JW8204S MPO/MTP polarity analyser uses a 1310nm laser and supports additional module integration
Specifications
MPO/MTP Polarity Analyser
JW8204A
MPO/MTP Polarity Analyser
JW8204S
Model JW8204A JW8204S
Number of Channel Compatible 48 core or below Compatible 48 core or above
Fiber Type SMF: 9/125 MMF: 50/125, 62.5/125
Optical Output Interface MPO/PC 12core male
Optical Receive Interface MPO/PC 12core male
Test Time ＜ 1S (48core)
Communication Interface RS232
Display 4.3inch TFT color screen
Operating Temperature -5℃ to 40℃
Storage Temperature -25℃ to 70℃
Power Supply AC 220V 50Hz
Dimensions 3U×235×380mm 120×235×380mm
