JW8301/JW8302

Single Fiber/Dual Fiber Insertion Loss & Return Loss Meter

Fiber optic test platform for measuring insertion loss and return loss of simplex and duplex fiber optic cables

This loss meter is designed for testing insertion loss (IL) and return loss (RL) of passive optical components, including CWDM devices, multi-wavelength components, PLC splitters, and fiber optic jumpers. It features integrated red light or 850nm multimode light source functionality and supports various advanced capabilities, such as pedal switch, threshold determination, automatic multi-wavelength detection, system integration, and integration with PC software for advanced customization, enabling secondary development for tailored testing workflows and system integration.

Request a Quote
Features
  • Supports 2, 3, and 4-wavelength IL/RL testing
  • Includes either a 650nm red light source or an 850nm multimode light source
  • Automatic multi-wavelength testing and display
  • Simultaneous testing of multiple selected wavelengths
  • High-precision optical power meter mode with a test range of +3dBm to -75dBm
  • USB and RS232 connectivity to meet diverse requirements
  • Comprehensive threshold settings and alarm functions
  • Optional integrating sphere configuration for the optical power meter
  • External probe configuration available for testing bare fiber clamps
  • Supports polarity sequence testing
  • Simultaneous testing of duplex LC cables or cables with different interfaces
  • Pedal switch for data upload
  • Multiple operating modes, including OPM (Optical Power Meter), IL (Insertion Loss), RL (Return Loss), IL2 (Dual-Wavelength Insertion Loss), and ILRL (Combined IL and RL Mode)
Specifications
Single Fiber Insertion Loss and Return Loss Meter

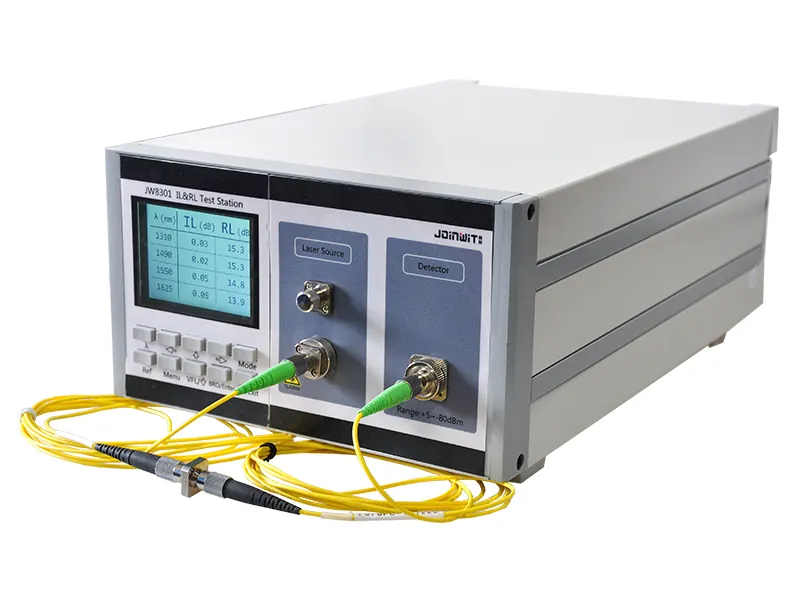

JW8301
Single Fiber Insertion Loss and Return Loss Meter
Dual Fiber Insertion Loss and Return Loss Meter

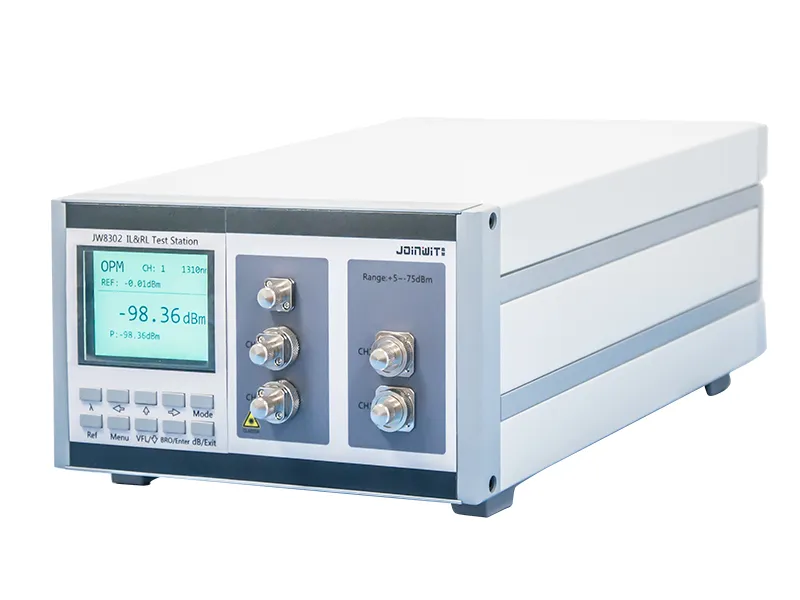

JW8302
Dual Fiber Insertion Loss and Return Loss Meter
Model JW8301 JW8302
Optical Power Meter (OPM)
Detector Type Indium Gallium Arsenide (InGaAs)
Detector Size Ø2.0mm
Wavelength Measurement Range 850 to 1700nm
Power Measurement Range +3dBm to -75dBm (built-in optical power meter)
+10dBm to -55dBm (integrating sphere)
+5dBm to -55dBm (external probe)
Linearity (built-in) ±0.04dB (+5 to -55dBm)
±0.08dB (-55 to -65dBm)
±0.2dB (-65 to -75dBm)
Fiber Type Standard single-mode optical fiber and multimode optical fiber
Total Uncertainty ±5%
Optical Light Source (OLS)
Single Mode Multimode
Optical Wavelength 1310/1550nm 850/1300nm
Source Type FP Laser LED
Return Loss Measurement Range 12 to 75dB 12 to 50dB
Return Loss Measurement Accuracy 1dB (12 to 55dB) 1dB (12 to 35dB)
Center Wavelength ±10nm ±30nm
Encircled Flux Standard Unconcerned Meet IEC-61280-4-1 standards (optional)
Insertion Loss Uncertainty ±0.05dB ±0.1dB
Insertion Loss Stability ±0.01dB ±0.03dB
Output Power ＞ -5 dBm ＞-27 dBm
Source Stability 0.01dB/15min 0.01dB/15min
0.03dB/8hour 0.05dB /8hour
Fiber Core 9/125 50/125 or 62.5/125
Optical Connector Type FC/APC
Red Light Source Support 1 channel 650nm 1mW red light
General

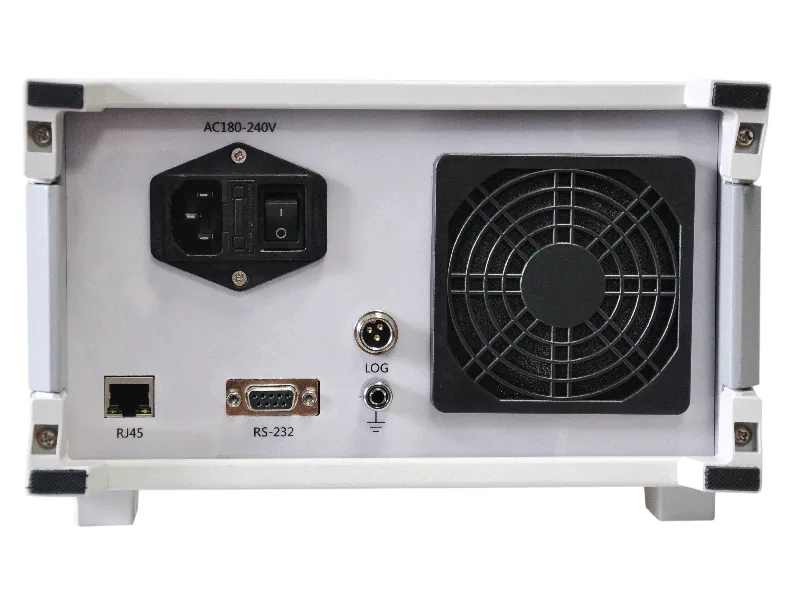

Power Supply 220VAC50Hz
Warm-up Time 5 to 15 minutes
Communication Interface RS232
Operating Temperature +10 to +40℃
Storage Temperature -15 to +70℃
Weight < 5kg
Dimensions 3U×235×380mm
