4 Channel Optical Power Meter
4 Channel Optical Power Meter 4 Channel Optical Power Meter
JW8102/JW8102NS

4 Channel Optical Power Meter

Benchtop optical power meter for measuring intensity of optical signals

This optical power meter features both RS232-C and RS485 communication interfaces, designed to support both simplified and standard commands. The simplified commands significantly improve communication reliability with PCBs. The power meter also supports secondary development, allowing users to customize its functionality based on specific application requirements. With detachable external optical power meter probes, it caters to the needs of optical device manufacturers, research institutions, and universities.

Request a Quote
Features
  • Configurable 1 to 4 optical power meter channels
  • Comes with five types of adapter connector options
  • Optical power meter can be configured as either an external probe or a panel-mounted unit
Specifications

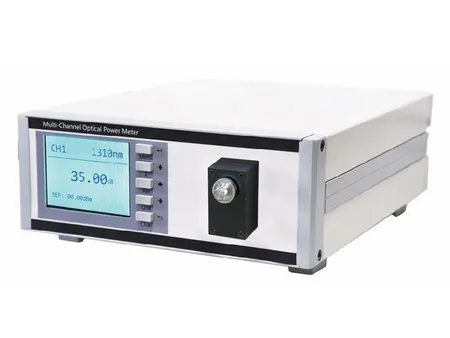

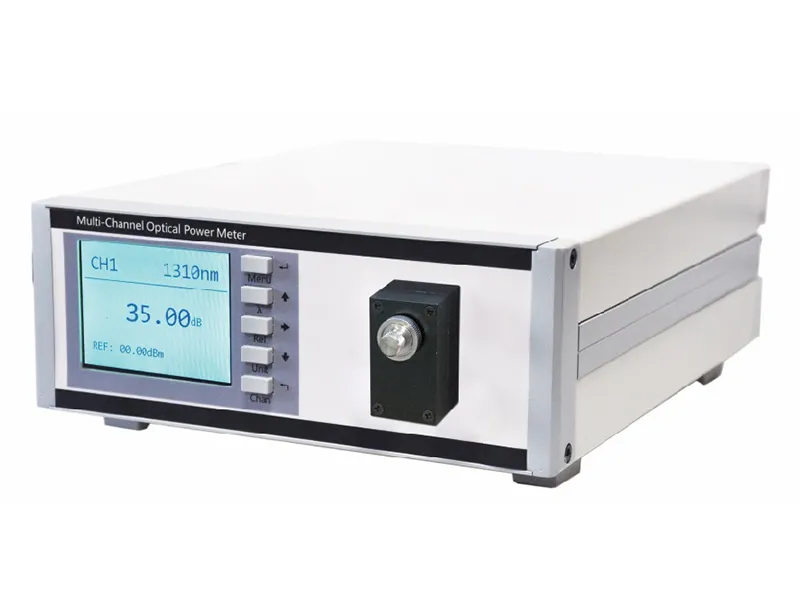

4 Channel Optical Power Meter
JW8102
Benchtop Optical Power Meter
4 Channel Optical Power Meter
JW8102NS
Benchtop Optical Power Meter (High Power Version)
Model JW8102 JW8102NS
Wavelength Range 850 to 1700nm, 400 to 1100nm
Detector Type InGaAs/Si
Detector Size Ø2.0mm
Measurement Range +5 to -75dBm +35 to -50dBm
Linearity ±0.04dB (+5 to -50dBm)
±0.08dB (-50 to -60dBm)
Uncertainty ±3%
Measurement Unit dBm/W
Display Resolution 0.1/0.01/0.001dB
Operating Temperature -5 to +40℃
Storage Temperature 25 to +70℃
Power Supply AC 220V 50Hz
Weight < 5kg
Dimensions 2U×235×300mm

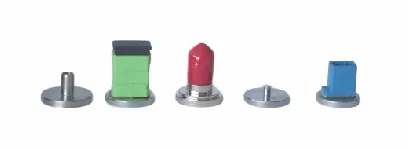

OPM Adapters
