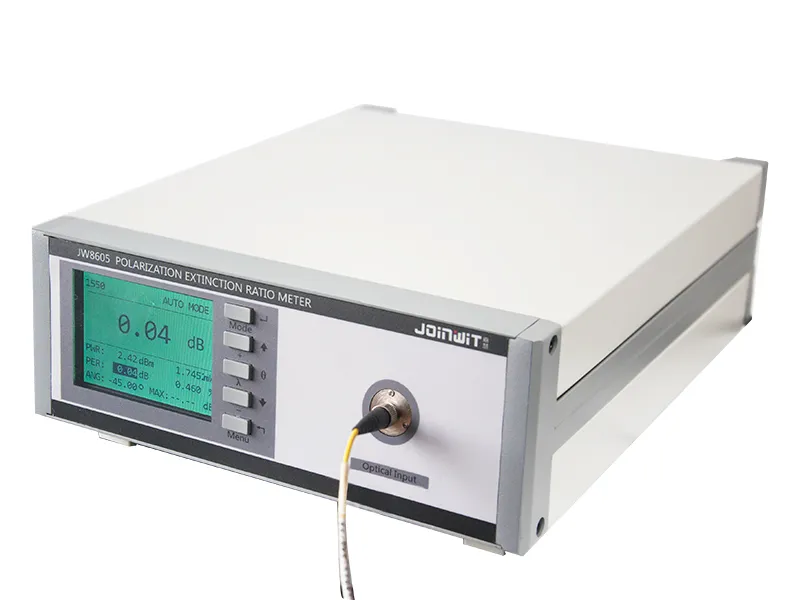

JW8605

Polarization Extinction Ratio Meter

PER meter for measuring polarization extinction ratio (PER) of polarization-maintaining devices

This specialized polarization measurement instrument is designed for measuring the polarization extinction ratio (PER)) of polarization-maintaining devices, polarization angle of light sources, and PER of polarization-maintaining fibers and optical components. It can be used for various applications, including measuring the extinction ratio of polarization-maintaining fibers, devices, connectors, and performing polarization angle and axis measurements with remarkable precision and speed.

Request a Quote
Features
  • Wide dynamic range for PER measurement up to 50dB; maximum input power of +10dBm
  • Simultaneous display of insertion loss, optical power, extinction ratio, optical axis angle, and polarization angle
  • Supports free-space input

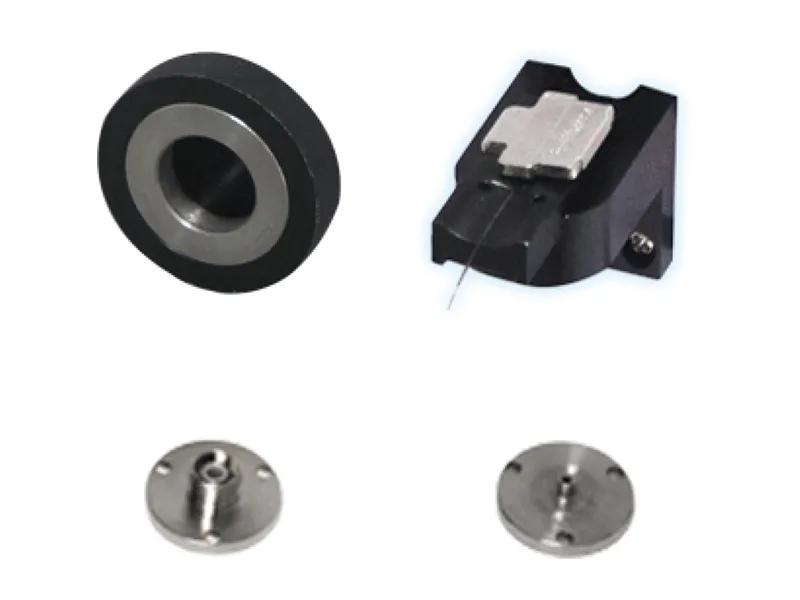

  • Interchangeable connectors: FC, SC, LC
  • Supports operation via an external PC
Typical Applications
  • Monitoring of polarization-maintaining fiber splicing
  • Testing Y-branch optical fiber gyroscope
  • Alignment of polarization axis of optical device
  • Measuring the extinction ratio of polarization-maintaining fibers
  • Aligning polarization-maintaining fibers with laser light sources
  • Testing PM couplers (PMC) and polarization beam splitters (PBS)
Specifications
Type C Type A Type B Type
Wavelength Range 400 to 700nm 600 to 1200nm 1200 to 1700nm
Maximum Input Power +10dBm
Input Power Range -30 to +10dBm -40 to +10dBm -40 to +10dBm
Maximum PER 30dB 40dB 50dB
PER Dynamic Range 400 to 500nm: 20dB -30 to +10dBm: 40dB -30 to 10dBm: 50dB
500 to 700nm: 30dB -40 to -30dBm: 30dB -40 to -30dBm: 40dB
PER Resolution <10dB: 0.001dB
≥10dB: 0.01dB
PER Accuracy PER≤2dB: ≤±0.1dB
PER<30dB: <±0.3dB
PER≥30dB:<±1.0dB
Polarization Angle Resolution 0.11°
Polarization Angle Accuracy < ±0.45°
Measurement Speed 0.25s
Optical Connector Type FC/PC (support SC/LC also, bare fiber adapter is optional)
Communication Interface RS232
