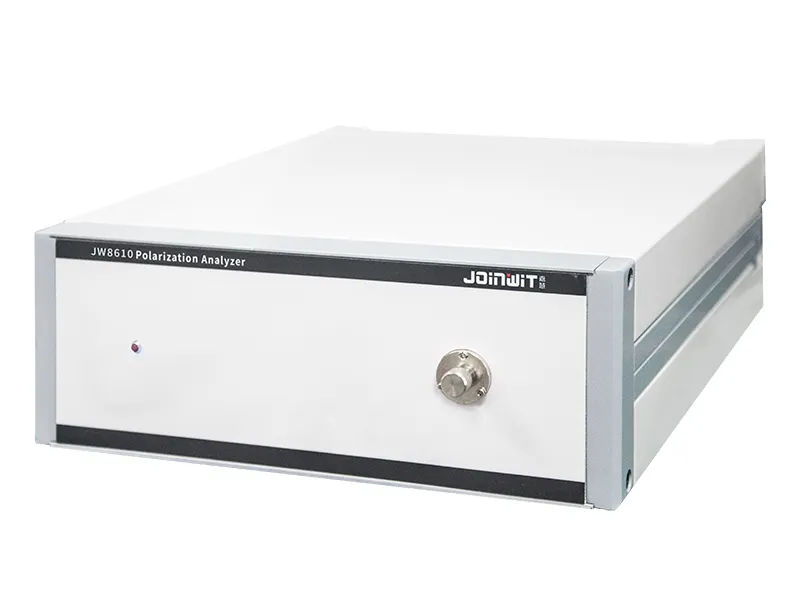

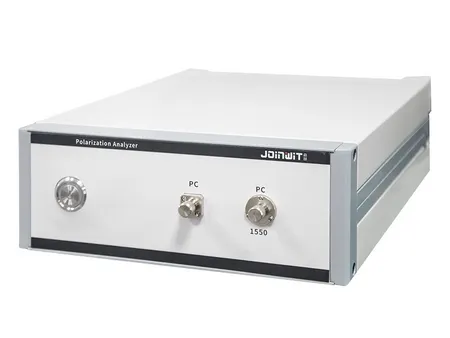

Polarimeter / Polarization Analyzer
JW8610

Polarimeter / Polarization Analyzer

DOP meter for measuring the degree of polarization (DOP) of a light source

This polarization analysis instrument is designed for measuring the polarization state of collimated free-space light and fiber optic light sources. Utilizing a rotating wave plate method, it achieves a maximum sampling rate of 20 Hz. The polarimeter includes software capable of real-time polarization state display on a Poincaré sphere interface. When paired with the polarization state thermal cycling heater, it can measure the polarization extinction ratio (PER) of narrowband light through fiber heating techniques.

Request a Quote
Typical Applications
  • Polarization state analysis and monitoring
  • Polarization degree (DOP) measurement
  • Extinction ratio (PER) measurement (with JW8612 thermal cycling heater)
  • Rotation angle measurement
Specifications
Wavelength Range 1270-1650nm
SOP Accuracy 0.25°
DOP Accuracy 1%
PER Measurement Range 0-40dB
PER Resolution 0.1dB
Input Power Range -40 to +10dBm
Sampling Rate 100Hz
Optical Connector Type FC or free-space collimated beam
Beam Diameter 3mm
Maximum Deflection Angle of Collimated Beam 2°
Dimensions 235×104×300 mm

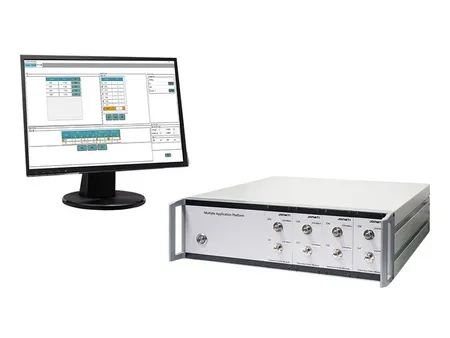

Multi-Channel Polarization Extinction Ratio Meter
JW18001 Multi-Channel Polarization Extinction Ratio Meter

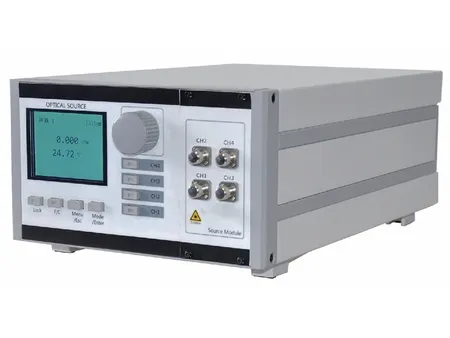

Low DOP SLED Light Source
JW8009 Low DOP SLED Light Source

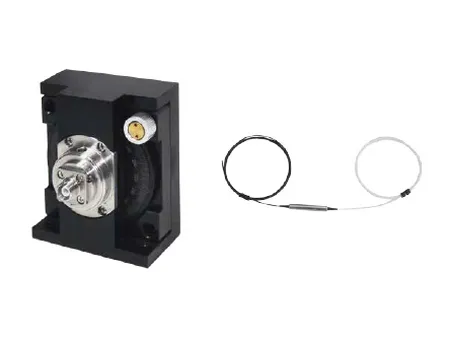

Mechanical Adjustable Polarizer
JW1512 Mechanical Adjustable Polarizer

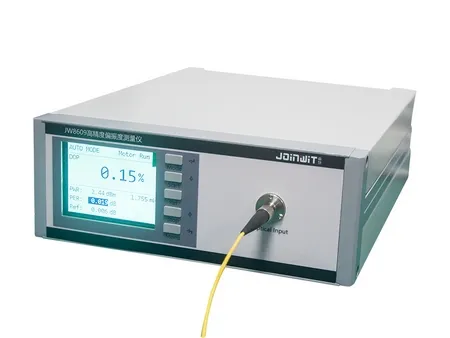

Degree of Polarization Meter
JW8609 Degree of Polarization Meter
Polarimeter / Polarization Analyzer
JW8610 Polarimeter / Polarization Analyzer
In-Line Polarimeter
JW8611 In-Line Polarimeter

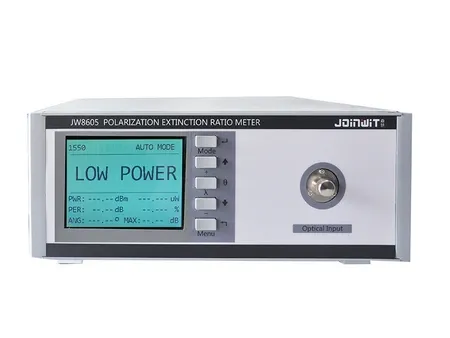

Polarization Extinction Ratio Meter
