Degree of Polarization Meter

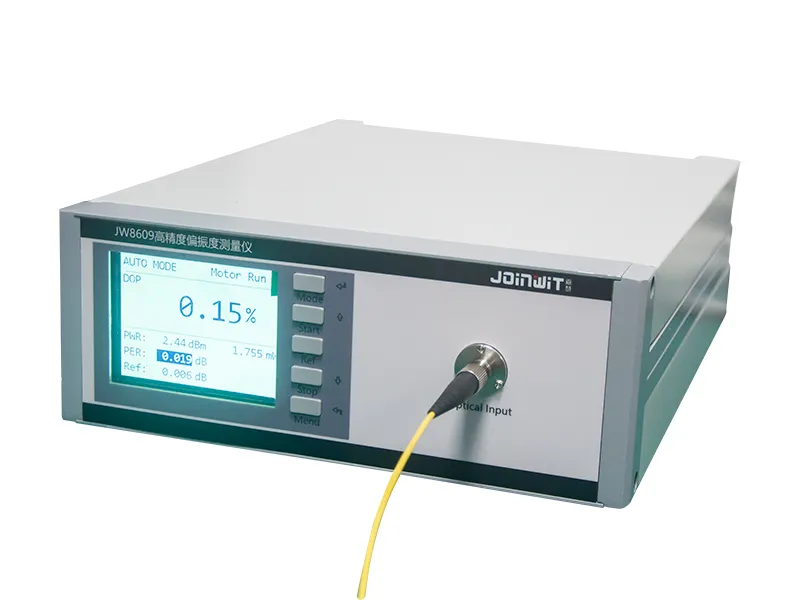

JW8609

Degree of Polarization Meter

DOP meter for measuring the degree of polarization (DOP) of a light source

The degree of polarization (DOP) meter employs a rotating wave plate method to measure the DOP of light sources with high accuracy and wide dynamic range. The design ensures minimal signal disturbance, with energy variation less than 0.002 dB, compared to traditional methods that may cause variations around 0.02 dB. The DOP meter achieves a measurement accuracy of 0.1% with a resolution of 0.01% and a measurement speed of 0.5 seconds, making it ideal for detecting and monitoring the polarization degree of light sources.

Request a Quote
Specifications
Wavelength Range 1270-1650nm
Input Power Range -30 to +10dBm
DOP Resolution 0.01%
DOP Accuracy 0.1%
DOP Range 0-100%
Measurement Speed 0.5s
Optical Connector Type FC/APC and FC/PC (general use)
Communication Interface RS232
AC Input Power 220V, 50Hz
Warm-up Time 15min
Operating Temperature +10 to +40℃
Storage Temperature -15 to +70℃
Weight 4kg
Dimensions 235×104×300mm (with feet)

Note: The 8609 model is specifically designed for Degree of Polarization (DOP) testing and does not support polarization state analysis. It is optimized for low polarization applications.
For detailed polarization state analysis or high polarization measurements exceeding 90%, we recommend using the JW8611 or JW8610 models.
