JW18001

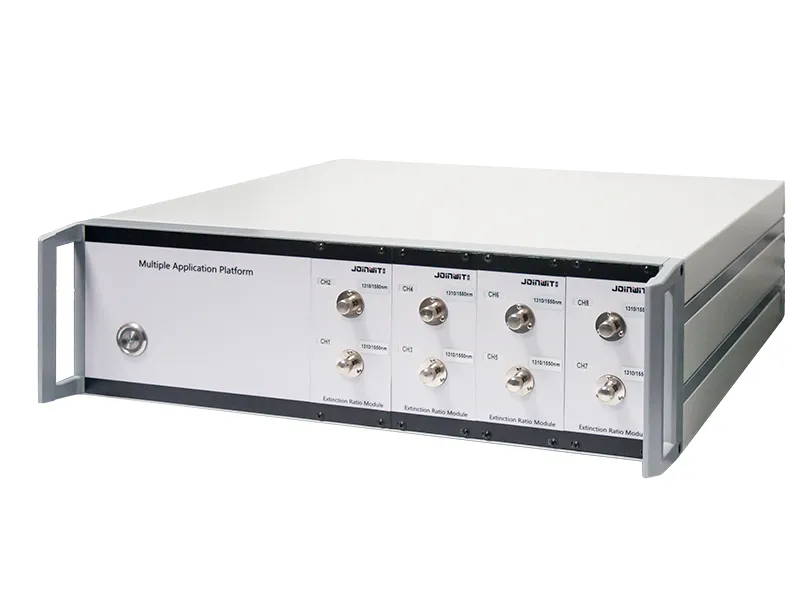

Multi-Channel Polarization Extinction Ratio Meter

PER meter for measuring polarization extinction ratio (PER) of polarization-maintaining devices

This fiber optic test equipment is designed for the detection of polarization extinction ratio (PER)) in polarization-maintaining devices, polarization degree measurement of light sources, extinction ratio testing for polarization-maintaining fibers, connectors, and other polarization-maintaining components. It offers a large dynamic range for PER measurements, high-precision stability, and multi-channel measurement capabilities, including temperature and insertion loss testing.

Request a Quote
Features
  • Wide dynamic range for PER measurement
  • Supports insertion loss measurement
  • Programmable system with channel expansion support
  • High accuracy and stability for aging monitoring

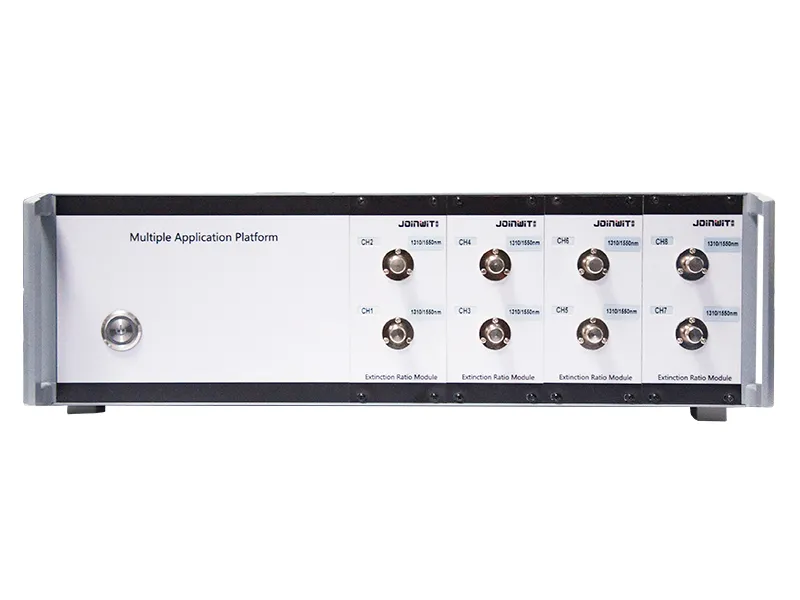

  • Multi-channel measurement capability, with stackable modules
  • Supports environmental temperature measurement and long-term continuous recording
  • Feature-rich software with database storage capabilities
Specifications
Type C Type A Type B Type
Wavelength Range 400 to 700nm 600 to 1200nm 1200 to 1700nm
Maximum Input Power +10dBm
Input Power Range -30 to +10dBm -40 to +10dBm -40 to +10dBm
Maximum PER 30dB 40dB 50dB
PER Dynamic Range 400 to 500nm: 20dB -30 to +10dBm: 40dB -30dBm to 10dBm: 50dB
500 to 700nm: 30dB -40 to -30dBm: 30dB -40dBm to 30dBm: 40dB
PER Resolution ＜10dB: 0.001dB ≥10dB: 0.01dB
PER Accuracy PER≤2dB: ≤±0.1dB
PER＜30dB: ＜±0.3dB
PER≥30dB: ＜±1.0dB
Measurement Speed 0.25s
Optical Connector Type FC/PC (support SC/LC also)

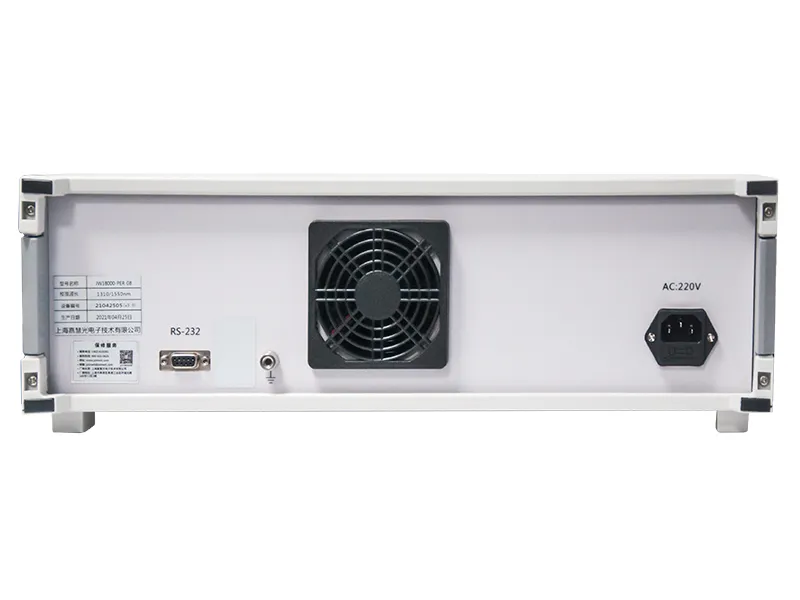

Communication Interface RS232
Windows Operation System Win7 (32/64-bit), Win10 (32/64-bit)
Monitor Type Recommendation: 21-inch monitor with minimum resolution of 1600×900
AC Input Power 220V, 50Hz
Warm-up Time 15min
Operating Temperature +10 to +40℃
Storage Temperature -15 to +70℃
Dimensions 3U×450×440 mm
