JW8002/JW8007

Benchtop/Rack-mount Stabilized Light Source

This light source is designed to generate stable and precise optical signals, making it essential for applications such as optical communication, signal transmission, and fiber sensing. Equipped with advanced automatic power control (APC) and automatic temperature control (ATC) technologies, it ensures exceptional output stability and wavelength consistency. Its versatile design is ideal for research, production, and engineering in the optical field.

Request a Quote
Features
  • High output power stability: up to 0.01dB
  • One-touch operation for ease of use
  • Excellent wavelength stability
  • High-precision APC and ATC circuits
  • Customizable wavelengths for specific requirements
  • Supports 1 to 4 wavelength outputs
  • Minimal impact on return loss for improved performance
Specifications
Benchtop/Rack-mount Stabilized Light Source

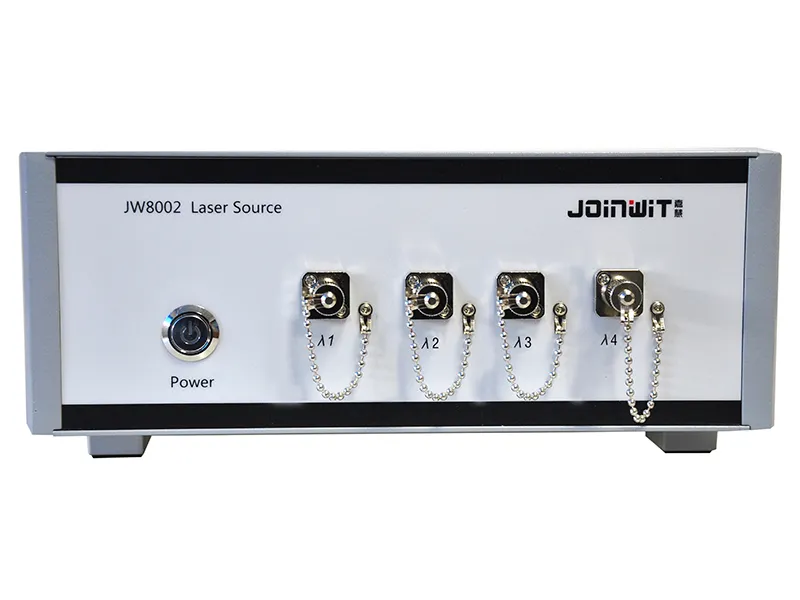

JW8002
Benchtop Stabilized Light Source
Benchtop/Rack-mount Stabilized Light Source

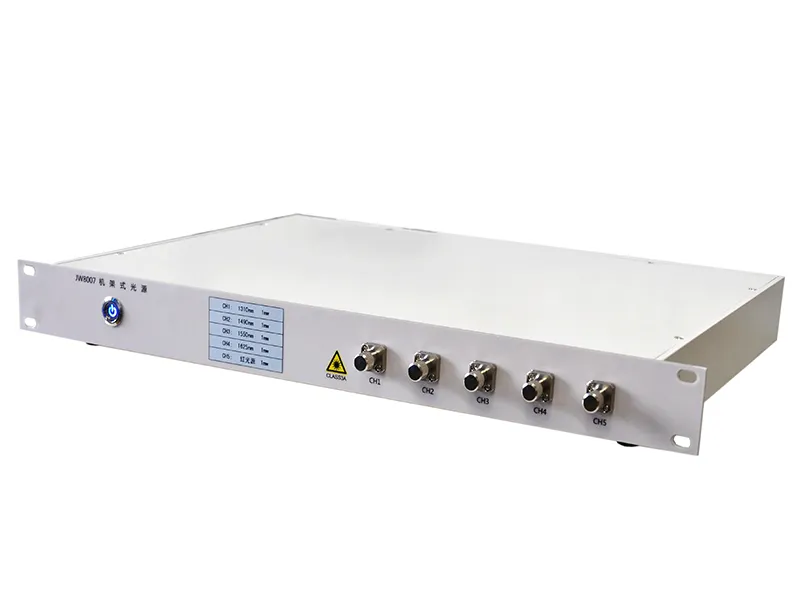

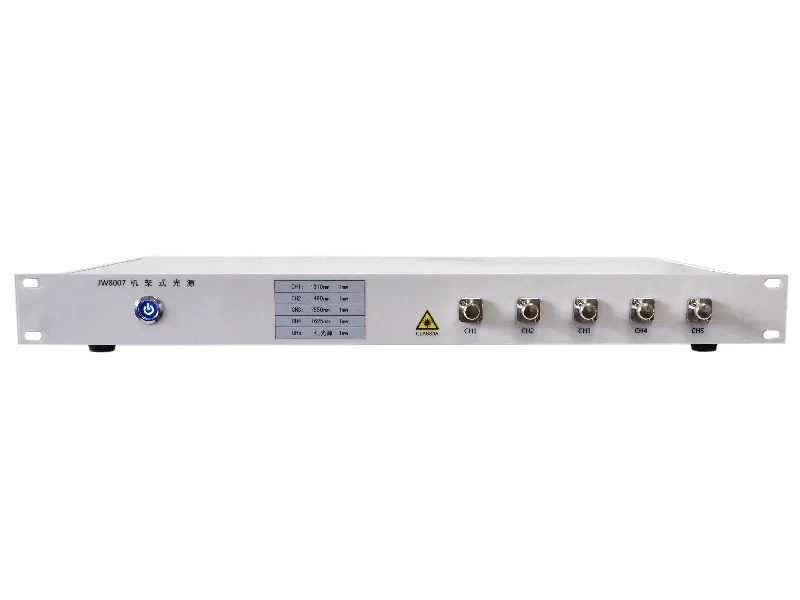

JW8007
Rack-mount Stabilized Light Source
Model JW8002 JW8007
Supported Channel 1/2/3/4
Maximum Output Power 2/5/10mW, or customizable
Working Wavelength 1310/1550nm, or customizable
Output Power Stability ±0.01dB (15min/2mW, 25℃) ±0.05dB (8hour/2mW, 25℃)
Laser Type Distributed feedback (DFB), or customizable
Output Return Loss >45dB
Temperature Stability ±0.1℃
Temperature Setting Range 20 to 30℃
Optical Connector Type FC/APC, or customizable
Power Supply AC 220V AC 220V or DC 48V
Dimensions 2U×235×380 19inch standard 1U rack mount
Weight < 3.5kg
Benchtop Stabilized Light Source

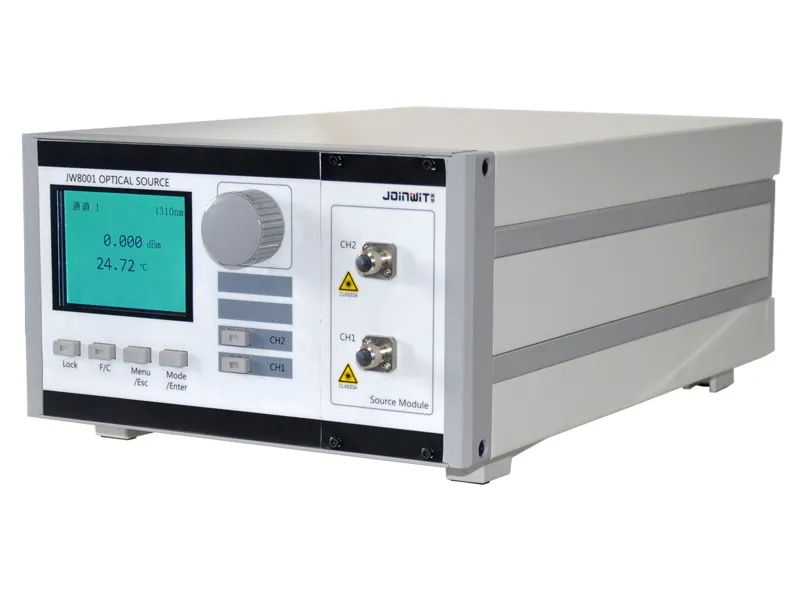

JW8001 Benchtop Stabilized Light Source
