Benchtop ASE Broadband Light Source
JW8005

Benchtop ASE Broadband Light Source

This broadband light source is specially designed for optical sensing systems, featuring an amplifier/spontaneous emission module built with erbium-doped fiber and high-quality pump lasers. Its advanced ATC (Automatic Temperature Control) and APC (Automatic Power Control) circuits ensure stable output and excellent wavelength stability. The output power is adjustable via an RS-232 interface, providing flexibility for various testing scenarios. With high spectral flatness and an optimized optical path, it is an ideal tool for precision optical applications.

Request a Quote
Features
  • High output power up to 50mW

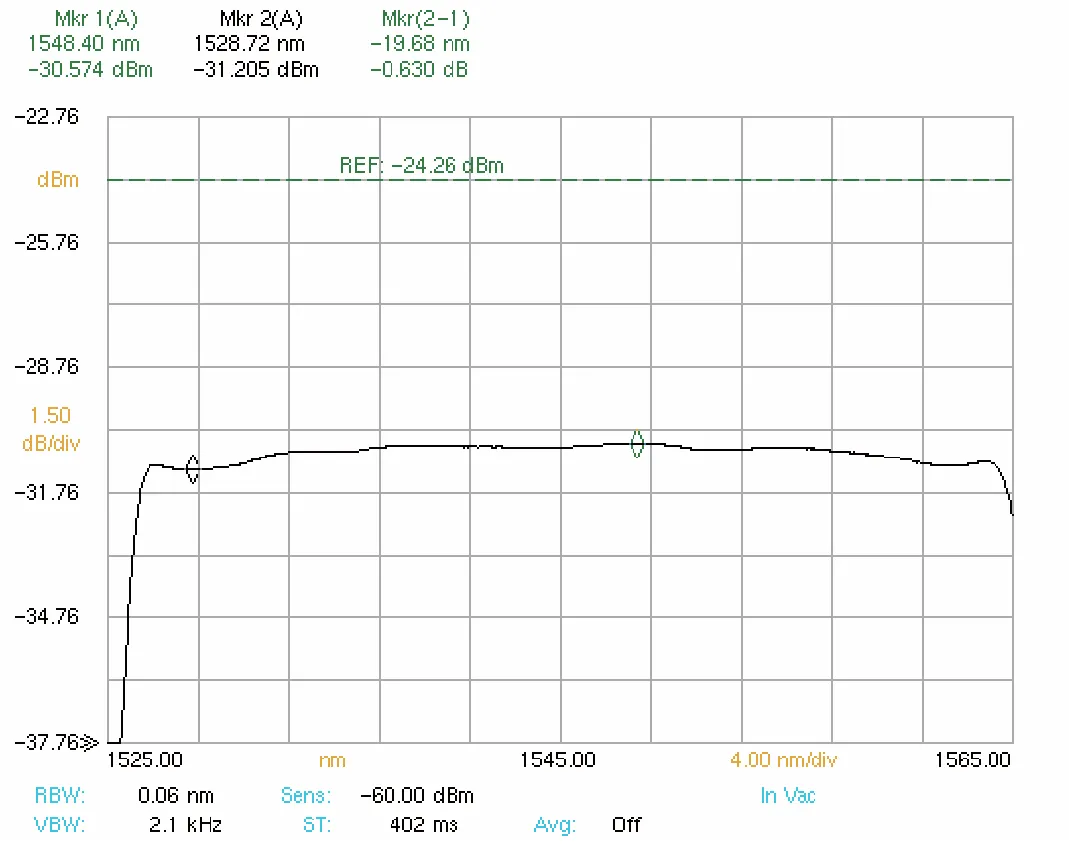

  • Stable spectral range from 1525nm to 1566nm
  • ASE bandwidth covering C+L wavebands
  • High-precision ATC and APC control circuits
  • Adjustable output power via a rotary knob
  • Customizable power and spectrum configurations
Typical Applications
  • Fiber optic sensors
  • Fiber optic gyroscopes
  • University research and laboratory testing
  • Passive optical component testing and production
  • Spectral analysis
  • Wavelength division multiplexing (WDM) component testing
Specifications
Measurement Range 1525 to 1566nm
Output Power +13dBm
Power Supply 110V/220V AC
Power Consumption 50W
Operating Temperature 0 to 50℃
Storage Temperature -40 to 70℃
Relative Humidity 10-85%
Dimensions 280×260×112mm
Weight 3kg
Optical Connector Type FC/APC
Communication Interface RS232
