High-Speed Optical Power Meter
High-Speed Optical Power Meter High-Speed Optical Power Meter High-Speed Optical Power Meter High-Speed Optical Power Meter
JW8103A

High-Speed Optical Power Meter

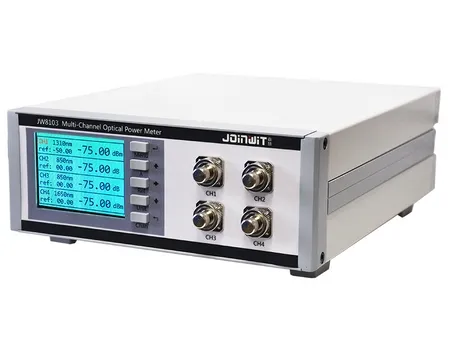

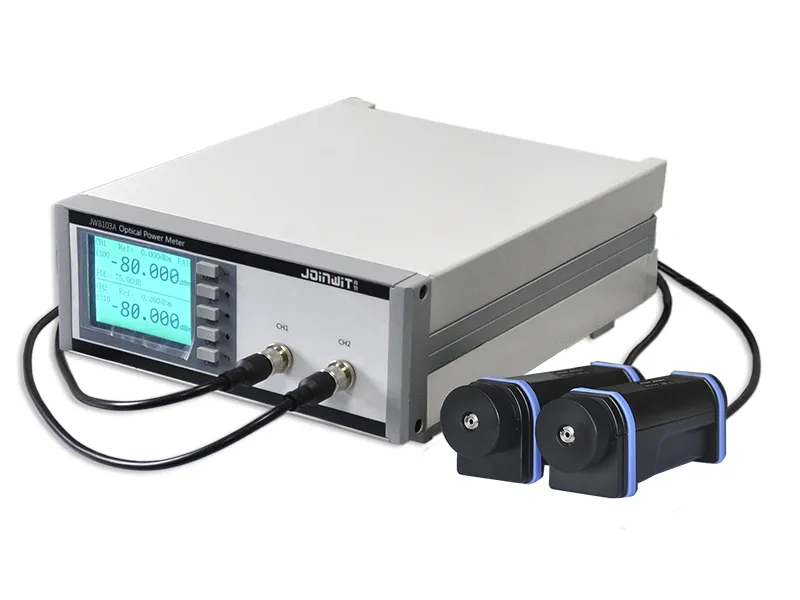

Benchtop optical power meter for measuring intensity of optical signals

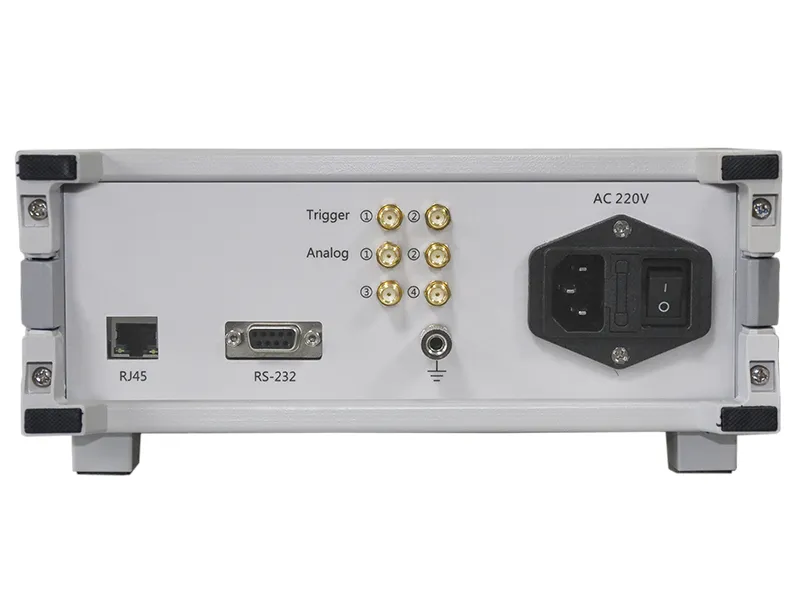

This optical power meter is equipped with RS232-C and RJ45 communication interfaces for seamless connectivity with PCs. The communication interface supports both simplified and standard commands, enabling faster communication speeds with PCs and enhanced reliability with PCBs. It is customizable for secondary development, offering a detachable external optical power meter probe that meets the needs of optical device manufacturers, research institutions, and universities.

Request a Quote
Features

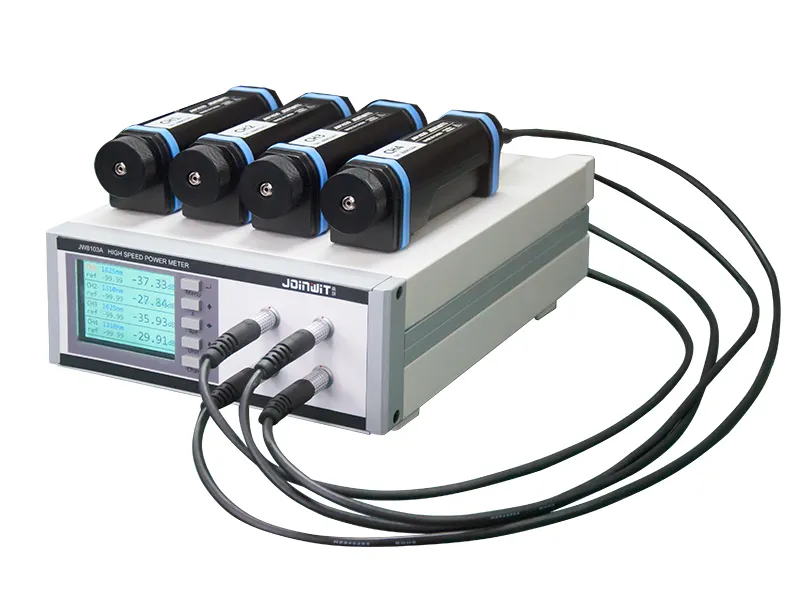

  • Multi-functional and flexible configuration (detachable probe for standalone use, connection to the meter, or built-in detector use)
  • Configurable with 1 to 4 channels (more channels available with the JW8105 model)
  • Wide dynamic testing range of +10 to -80dBm
  • Adjustable sampling rate with a maximum of 10 kS/s
  • Three trigger storage modes with customizable trigger edges
  • Large-capacity storage with up to 65,536 data points per channel
  • Analog voltage output functionality
  • Supports simultaneous communication via RJ45 and RS232
  • Capable of PDL (Polarization-Dependent Loss) measurement
  • User-configurable wavelength display, supporting up to 32 wavelengths
  • Multiple connector options, including bare fiber adapters, 1.25mm/2.5mm universal connectors, and FC/LC/SC interfaces
  • Internal temperature control circuitry ensures detector stability for higher testing accuracy
Specifications
Detector Type InGaAs/Si
Detector Size Ø2.0mm
Wavelength Measurement Range 850 to 1700nm, 400 to 1100nm
Power Measurement Range A: +10 to -80dBm
C: +25 to -60dBm
Linearity ±0.04dB (A: +10 to -50dBm) (C: +25 to -35dBm)
±0.08dB (A: -50 to -70dBm) (C: -35 to -55dBm)
Uncertainty ±3%
Channel Uncertainty 0.04dB
Measurement Unit dBm/Watt
Display Resolution 0.01/0.001dB
Operating Temperature 5 to +40℃
Storage Temperature 25 to +70℃
Dimensions 2U×235×380mm
Weight < 5kg
Power Supply AC 220V 50Hz
Analog Voltage 0 to 2.5V
