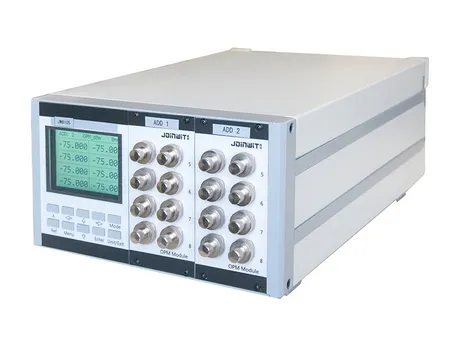

Multi-Channel Optical Power Meter

JW8105A/JW8105S

Benchtop optical power meter for measuring intensity of optical signals

Multichannel optical power meter is an effective testing solution for fiber optic manufacturers or labs requiring high channel counts. This optical power meter features high-speed sampling with a 100µS response time, enabling real-time reflection of optical power changes. Equipped with an RS232-C communication interface, it allows direct PC connectivity for data visualization and parameter configuration through dedicated software. Its communication interface supports both simplified and standard commands, ensuring faster communication with PCs and improved reliability with PCBs. Additional options include trigger storage, analog voltage output, and Ethernet connectivity. With a sampling speed of up to 10 kS/s, a dynamic range of +10 to -80dBm, and 64K storage per channel, this meter is ideal for precise optical measurements across various applications such as DWDM components, AWG arrays, PLC components, WSS, OPM, DPSK, EDFA, and other fiber optic systems.

Request a Quote

Features

Configurable wavelength settings
Adjustable sampling rate, up to 10 kS/s
Wide dynamic testing range: +10 to -80dBm
Capable of PDL (Polarization-Dependent Loss) measurement
Optional optical power detection ranges
Comprehensive communication command set with demo software support
Supports wavelength editing functionality
Trigger storage functionality available
Optional Ethernet connectivity
Analog voltage output functionality
Wavelength settings can be saved for future use

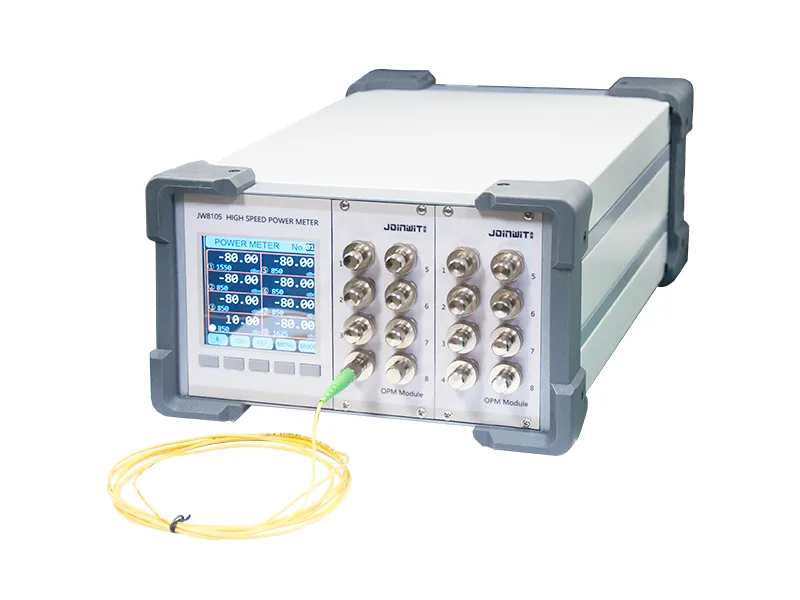

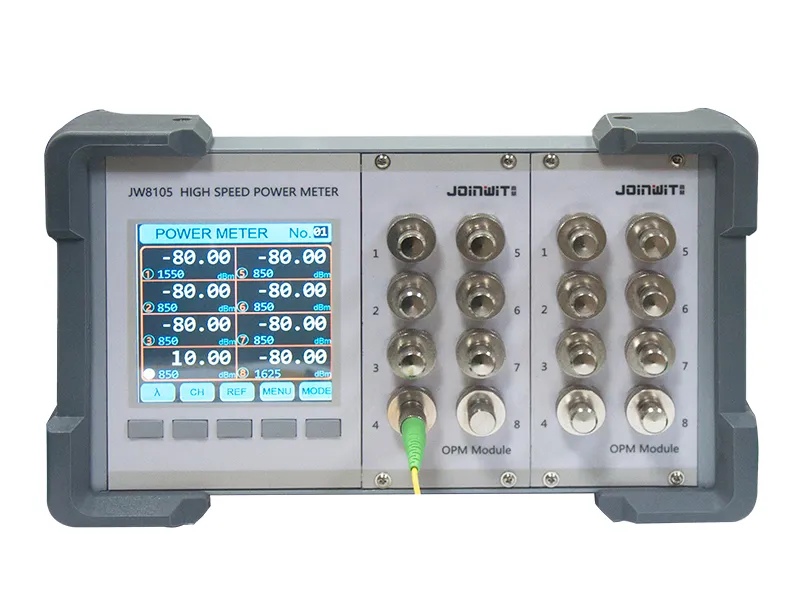

Upgraded casing with a color screen interface (JW8105S model)

Specifications

JW8105A

JW8105S

Wavelength Range	850 to 1700nm, 400 to 1100nm
Calibration Wavelength	850/1300/1310/1490/1550/1625nm
Detector Type	InGaAs/Si
Detector Size	Ø2mm
Measurement Range	A: +10 to -80dBm C: +25 to -60dBm
Linearity	±0.04dB (A: +10 to -50dBm) (C: +25 to -35dBm) ±0.08dB (A: -50 to -70dBm) (C :-35 to -55dBm)
Sampling Rate	10ksps
Uncertainty	±3% (A: +10 to -60dBm) (C: +25 to -45dBm)
Display Resolution	0.01/0.001dB
Measurement Unit	dB/dBm/mW/μW/nW

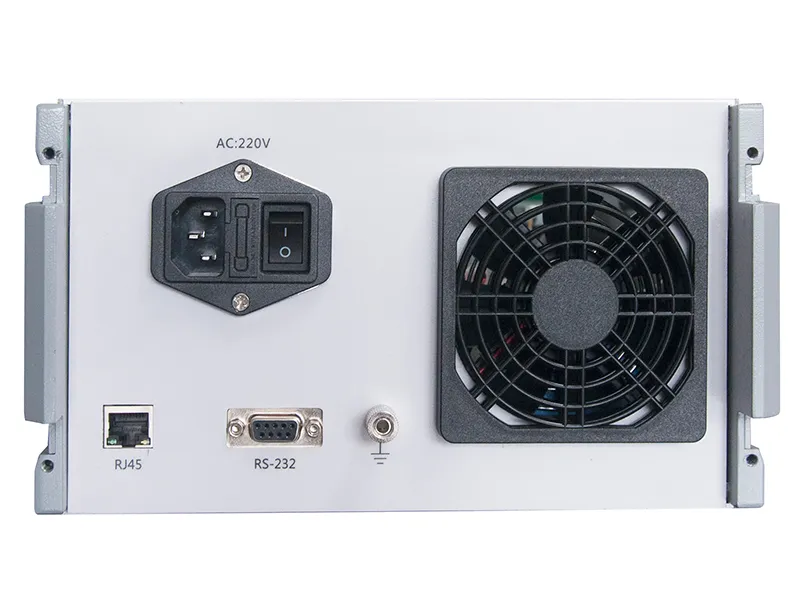

Communication Interface	RS232-C/RJ45
Operating Temperature	-5 to +40℃
Storage Temperature	-25 to +70℃
Power Supply	AC 220V 50Hz
Analog Voltage	3U×235×380mm
