Benchtop Stabilized Light Source
Benchtop Stabilized Light Source Benchtop Stabilized Light Source Benchtop Stabilized Light Source

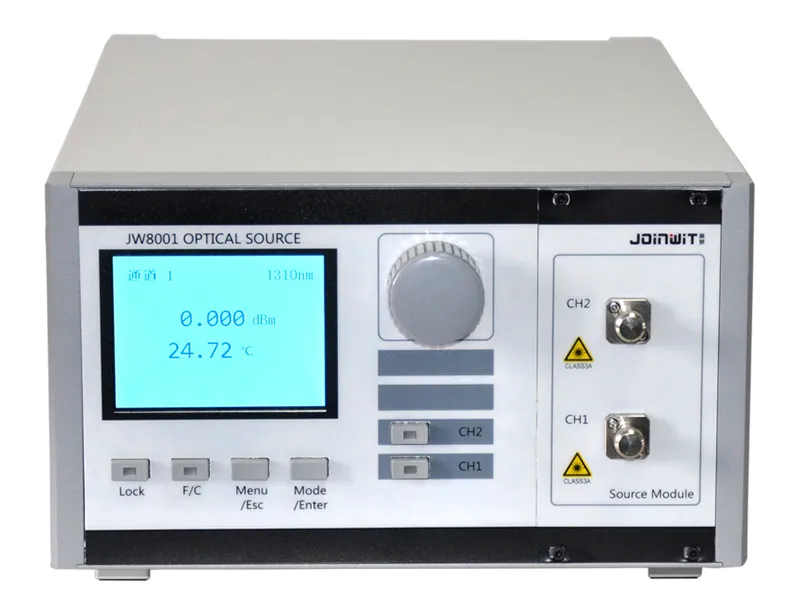

JW8001

Benchtop Stabilized Light Source

This light source offers incredible output power stability of better than 0.005dB, utilizing advanced automatic power control (APC) and automatic temperature control (ATC) technologies to ensure excellent wavelength stability. It supports 1 to 4 independently adjustable light source channels, with each channel offering tunable output power. Compatible with DFB, FP, and LED laser types, this fiber optic testing instrument is ideal for a wide range of applications, including optical component testing, device aging experiments, monitoring, fiber sensing, and optical transmission in manufacturing, research, and academic environments.

Request a Quote
Features
  • Exceptional output power stability: ≤0.005dB
  • High-precision APC and ATC circuits for consistent performance
  • Independently adjustable output power for each channel
  • Superior wavelength stability
  • Full parameter display via LCD interface
  • Supports 1 to 4 light source channels
  • RS-232 communication interface for PC software control
Specifications
Supported Channel 1/2/3/4
Maximum Output Power 2/5/10mW, or customizable
Working Wavelength 1310/1550nm, or customizable
Output Power Stability ±0.005dB (15min/10mW, 25℃) ±0.025dB (8hour/10mW, 25℃)
Laser Type Distributed feedback (DFB), or customizable
Output Return Loss >45dB
Temperature Stability ±0.1℃
Temperature Setting Range 20 to 30℃
Optical Connector Type FC/APC, or customizable
Output Power Adjustment Coarse adjustment: 0.2mW Fine adjustment: 0.02mW
Communication Interface RS232
Display 3.5 inch TFT color screen
Power Supply AC 220V
Dimensions 3U×235×380mm
Weight < 4kg
