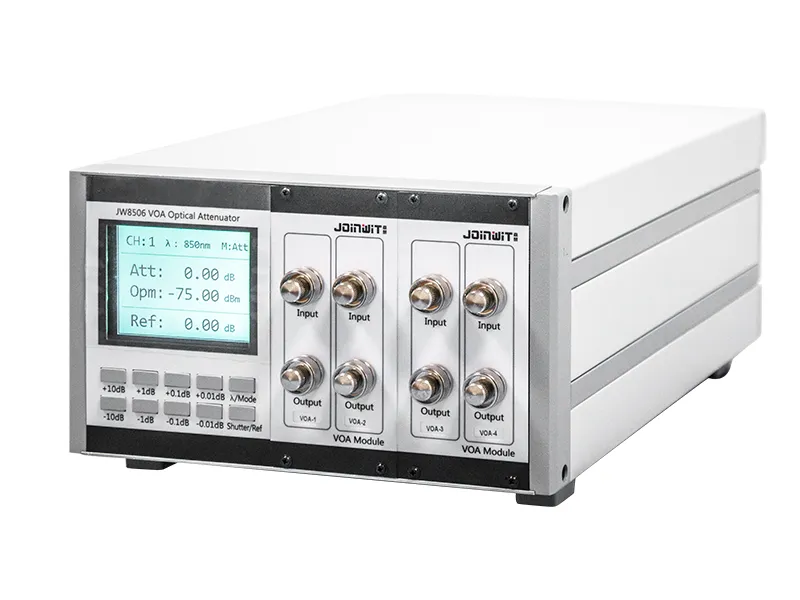

JW8506

Benchtop Variable Optical Attenuator

Designed for testing optical transceivers and integrated optical networks, this variable optical attenuator ensures efficient performance with its multi-channel independent attenuation capability, delivering higher data throughput and faster testing rates. Equipped with extensive communication interfaces, it seamlessly integrates with our product lineup. This makes it the perfect choice for sensitivity testing, bit error rate analysis, and precise attenuation measurements in 40G/100G optical modules, optical networks, and optical transmission systems.

Request a Quote
Features
  • Supports multi-channel independent attenuation (customizable channel count)
  • Compatible with single-mode wavelengths
  • Includes internal optical power meter functionality
  • Offers fast output and precise attenuation control
  • Supports optical output lock function
  • Features VOA shutdown and zeroing capabilities

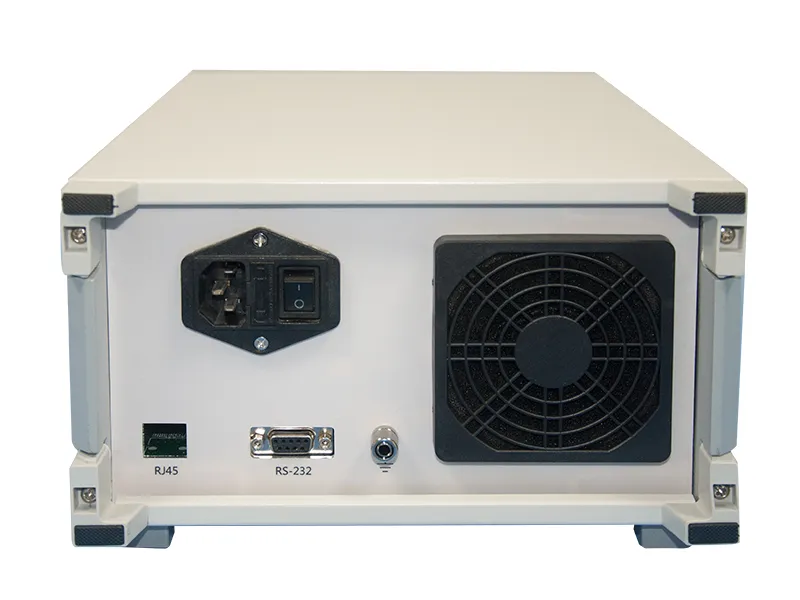

  • Equipped with RS232 and RJ45 interfaces
  • Enables Ethernet communication for simultaneous multi-channel control
  • Provides a comprehensive software protocol for easy system integration
Specifications
Model JW8506/JW8506S
Type Single Mode Variable Optical Attenuator
Maximum Attenuation 45dB
Attenuation Linearity ±0.2dB (0 to 30dB)
±0.4dB (30 to 45dB)
Fiber Type 9/125
Insertion Loss ≤1.5dB
Display Resolution 0.01dB
Maximum Allowable Input Level A: +13dBm C: +27dBm
Optical Connector Type FC/PC (or APC)
Communication Interface RS232/RJ45 (optional)
Response Time < 0.2s
Operating Temperature -5℃ to +40℃
Storage Temperature -25℃ to +70℃
Power Supply AC 220V 50Hz
Dimensions 3U×235×380mm
