JW3301

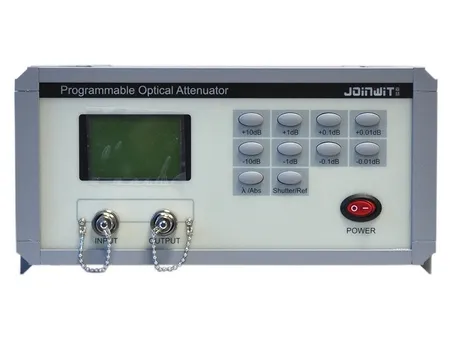

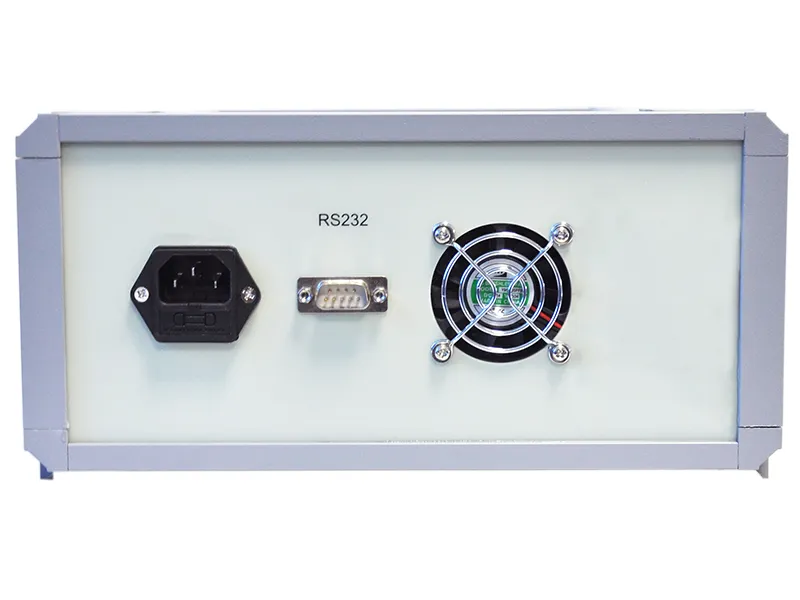

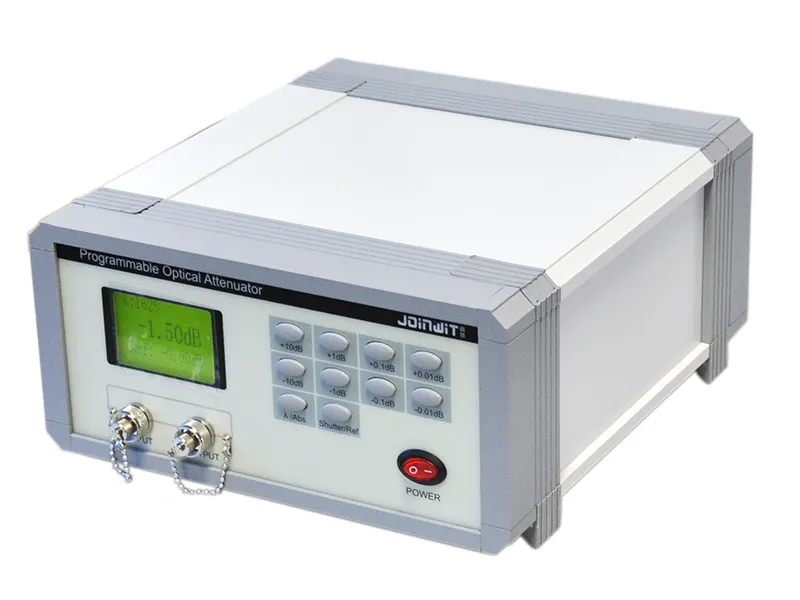

Programmable Variable Optical Attenuator

This programmable variable optical attenuator is a next-generation instrument designed for precise control of optical attenuation via the PO port. Featuring an innovative design and advanced circuitry, it provides continuous adjustable attenuation from 0 to 65dB across a wide single-mode wavelength range of 1260nm to 1650nm. With exceptional reliability and stability, it also includes an optical shutter function to enable users to cut off the optical path as needed. This optical attenuator is ideal for testing and debugging during the development and production of fiber communication systems, devices, and instruments. The programmable variable optical attenuator is the perfect solution for professionals in fiber optics who demand precision, stability, and flexibility in their testing environments.

Request a Quote
Features
  • Supports bit error rate (BER) measurements
  • Enables receiver sensitivity testing
  • Simulates optical signal loss accurately
  • Utilizes mechanical attenuation for precise adjustments
  • Wide dynamic range for versatile testing applications
Specifications
Model JW3301S JW3301M
Calibration Wavelength 1310/1490/1550/1625nm 850/1300nm
Attenuation Range 0dB to 65dB (excluding insertion loss) 0dB to 60dB (excluding insertion loss)
Display Resolution 0.01dB
Repeatability ≤0.05dB
Insertion Loss ≤1.5dB ≤2dB
Attenuation Accuracy (Linearity) ≤±0.2dB (0dB to 60dB)
Return Loss ≥50dB (single mode) ≥30dB (multimode)
Optical Connector Type (FC/SC/ST)/PC
Operating Environment Temperature: 0 to 45℃ Humidity: ≤90%RH
Maximum Output Power 500mW
Dimensions 260×190×120mm
Power Supply 220V 50Hz
