    Optical Time-Domain Reflectometer (OTDR)

    An optical time-domain reflectometer (OTDR) is a specialized device used to test and analyze fiber optic networks. It detects defects, signal loss, breaks, and connector issues along the fiber, while also helping to pinpoint fault locations with high accuracy. Beyond troubleshooting, an OTDR measures key performance parameters such as fiber length and overall quality. Our OTDR devices support multiple optical connector types, including FC, LC, SC, and ST, ensuring compatibility with a wide range of fiber optic network equipment.

    8-in-1 Mini Optical Time-Domain Reflectometer (OTDR)
    JW3302SJ 8-in-1 Mini Optical Time-Domain Reflectometer (OTDR)
    • Equipped with a 3.5-inch color LCD display for clear and intuitive operation.
    • Compatible with interchangeable FC, SC, and ST optical connectors.
    • Includes a 4000mAh high-capacity lithium battery for extended usage.
    • Internal storage for up to 600 test records, with expandable TF card support.
    16-in-1 Mini Optical Time-Domain Reflectometer (OTDR)
    JW6601A 16-in-1 Mini Optical Time-Domain Reflectometer (OTDR)
    • 4.3-inch capacitive touchscreen for intuitive operation.
    • Includes optical power meter (OPM) and light source (OLS) functions.
    • Long standby time of up to 20 hours with the built-in battery.
    • Compact and lightweight body, weighing just 350g.
    Optical Time-Domain Reflectometer (OTDR) with Touch Screen
    JW3302F Optical Time-Domain Reflectometer (OTDR) with Touch Screen
    • High dynamic range of up to 45dB, supporting multi-wavelength testing and short-distance measurements as close as 3 meters.
    • Ultra-short event dead zone of ≤0.8m for precise jumper and connector testing.
    • Measures up to four wavelengths, including 850/1300/1310/1490/1550/1625/1650nm (optional configurations available).
    • Optical signal detection and alarm system protect the OTDR from live fiber damage.
    Optical Time-Domain Reflectometer (OTDR) with Capacitive Touch Screen

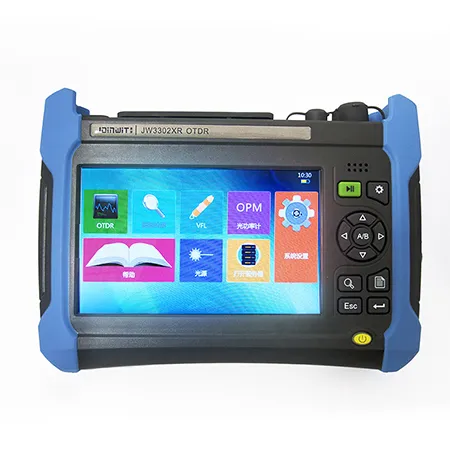

    JW3302XR Optical Time-Domain Reflectometer (OTDR) with Capacitive Touch Screen
    • Equipped with a 7-inch TFT color LCD with a capacitive touch screen for an intuitive interface.
    • Its maximum dynamic range of 50dB ensures reliable testing over long distances.
    • 256k data sampling points enable high-resolution measurements.
    • Capable of testing PON branches through optical splitters with a ratio of up to 1:128.
    Looking for more information?
    • Email: joinwit@joinwit.com
    • Tel.: +86-21 64357213

    Feel free to contact us.

    Contact us
    Related Fiber Testing Equipment
    Optical Fusion Splicer
    Optical Fusion Splicer
    • Optical Fusion Splicer (4.3-inch LCD Touch Screen) JW4106S
    • PRO Optical Fusion Splicer (5-inch LCD Touch Screen) JW4108
    Benchtop Light Source
    Benchtop Light Source
    • Handheld Optical Fiber Identifier JW3306E
    • Digital Optical Fiber Identifier JW3306B
    Visual Fault Locator (VFL)
    Visual Fault Locator (VFL)

    Fault detection plays an important role in fiber optic network installation and maintenance.

    Integrated Fiber Optic Tester
    Integrated Fiber Optic Tester
    • MPO Integrated Tester JW3502
    • Insertion Loss & Return Loss Integrated Tester JW3503

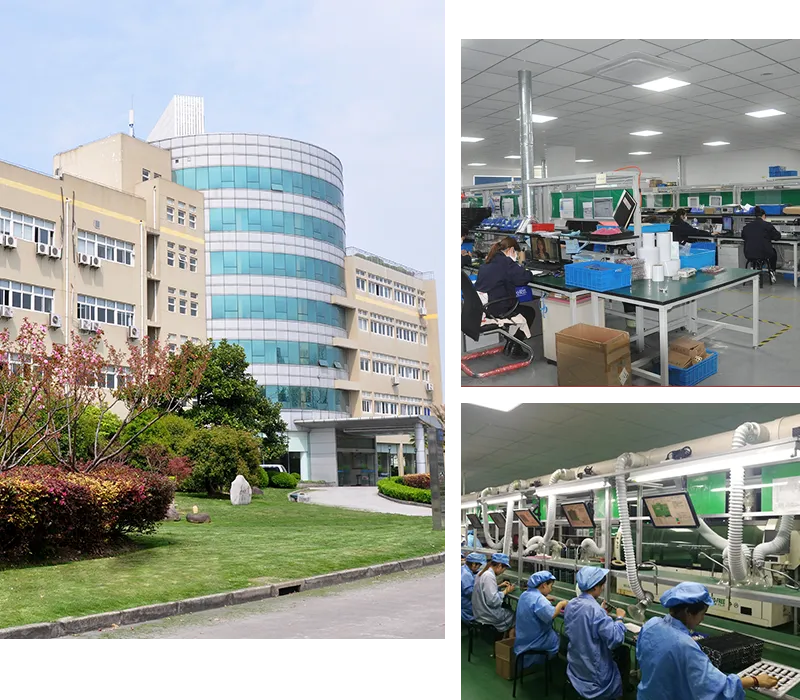

    Fiber Optic Test Equipment Manufacturer Since 1998
    Fiber Optic Test Equipment Manufacturer Since 1998
    • Engage in the research and development and manufacturing of desktop and handheld photoelectric testing instruments
    • The annual output of photoelectric testing equipment reaches 500,000 units
    • Passed ISO9001 series quality certification, 14001 environmental certification, CE certification, FC certification, RoHS certification, and many other international certificates
    • All products have 100% independent intellectual property rights, and provide OEM/ODM services
    • Our products have been recognized by Japan's NTT Communications, South Korea's SK Telecom, Deutsche Telekom, and the United States' Verizon, and have reached cooperation
