JW4106S

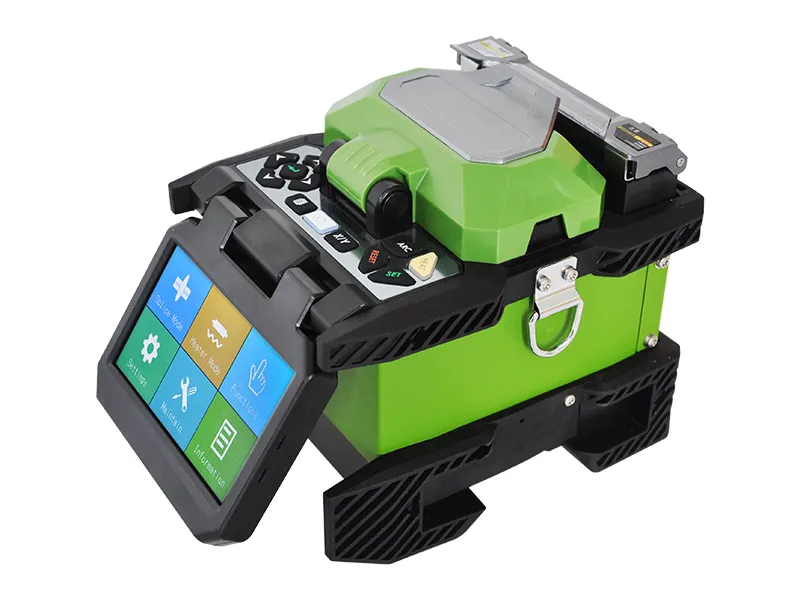

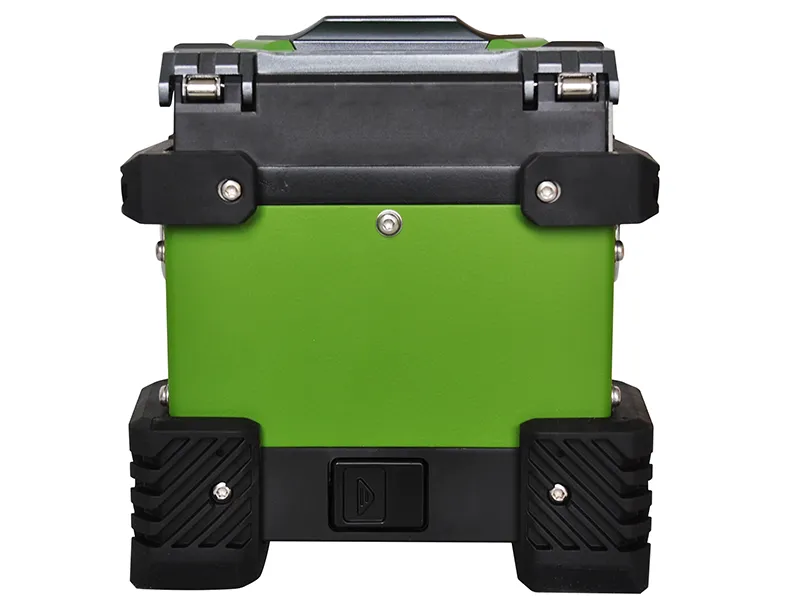

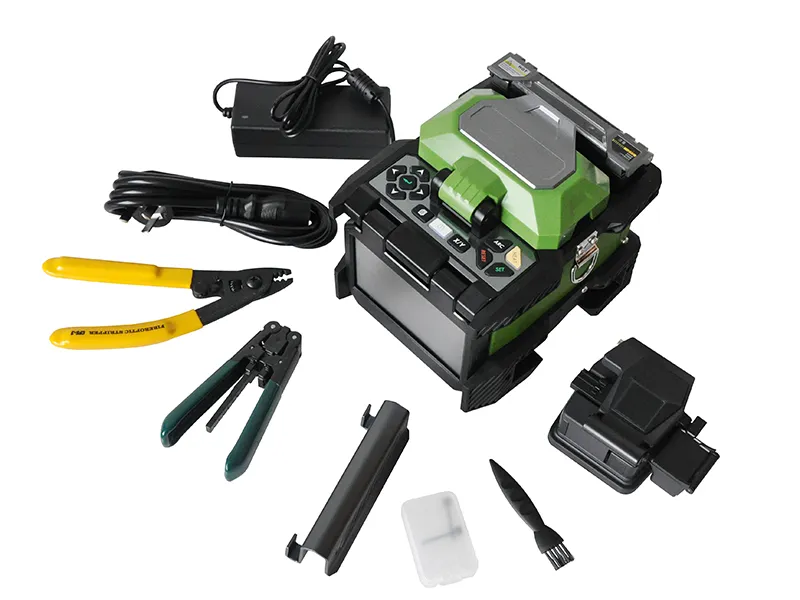

Optical Fusion Splicer with 4.3-inch LCD Touch Screen

Our fusion splicers are designed to enhance fiber splicing processes with fast operation and high precision. It completes splicing in just 7 seconds and heat shrinking in 18 seconds, significantly reducing the time required for these tasks. Featuring a high-resolution fiber microscope and imported high-speed motors, it ensures accurate alignment for reliable connections. The use of aluminum-magnesium alloy materials provides durability while keeping the fusion splicer lightweight and compact, making it suitable for both fieldwork and laboratory environments.

Request a Quote
Features
  • Ultra-low splicing loss achieved through precise core alignment.
  • Quick splicing completed in 7 seconds, with heat shrinking done in 18 seconds.
  • High magnification of up to 320x and capability to splice fibers as short as 5mm.
  • Flexible operation with 300 splicing modes and 100 heating modes.
  • Stores 10,000 splicing records and up to 64 images for detailed tracking and analysis.
  • Includes ceramic pressure pads, a ceramic V groove, and a multi-functional fiber holder for stable and secure handling.
  • Supports bi-directional splicing, automatic operation, and intelligent heat shrinking for added convenience.
  • Compact and lightweight design ensures easy portability for on-site work.
  • USB and SD card interfaces allow for data transfer and easy software updates.
  • Built-in modular lithium battery supports at least 200 splicing and heating cycles per charge.
Specifications
Dimensions (W×H×D) 120×130×154mm (without rubber anti-vibration pad)
Weight 1.59kg (without battery) (battery weight: 0.38kg)
Fiber Alignment Precise core alignment and cladding alignment
Applicable Fiber Common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651/652/653/655/657
Fiber Diameter Cladding: 80 to 150μm Coating: 0.1 to 3mm
Cutting Length 5 to 16mm (coated fiber diameter: ≤250μm)
10mm (coated fiber diameter 0.25 to 3mm)
Typical Splice Loss 0.02dB (SMF), 0.01dB (MMF), 0.04dB (DSF), 0.04dB (NZDSF)
Return Loss Better than 60dB
Lighting Built-in lights with high-brightness and wide lighting area
Fusion Splicing Time 7 seconds
Heating Time 18 seconds (typical)
Storage 10000 groups, 64 images
Pulling Force Test 1.96 to 2.25N
Heat-Shrinkable Tube 60mm, 40mm, etc.
Operating Environment Altitude: 0 to 6000m Relative humidity: 0 to 95% RH Temperature: -10 to 50℃
Display High performance 4.3 inch LCD touch screen
Magnification 320times/88times
Power Supply Input: AC100 to 240V, 60Hz, 0 to 1.5A
Output: DC10 to 15V
Battery Life 300 to 500 charging cycles, can be replaced by user
Battery Capacity 11.1V, 6400mAh, (splicing and heating cycles: 220 times)
Electrode Life 4000 times (typical), can be replaced by user
Operation Interface Graphical user interface (GUI)
External Interfaces USB/SD
