Economical/Intelligent PON Meter | FTTx Network Testing Tools

JW3213/JW3213N

Economical/Intelligent PON Power Meter

To support the growing demands of FTTx networks, the Economical and Intelligent PON Power Meters offer practical and versatile solutions for deployment, maintenance, and diagnostics. These power metering devices extract a minimal portion of the optical signal from the network, allowing precise measurements at any stage of operation. Designed to ensure network reliability, they validate signal performance for voice, data, and video services in various PON architectures. Both models are equipped with features tailored to meet specific needs, ensuring compatibility with existing and future network infrastructures.

Request a Quote

Features

JW3213

Measures voice, data, and video signals in PON architectures simultaneously.
Detects 1310nm upstream burst signals and 1490/1550nm downstream signals.
Configurable thresholds and alarms for effective monitoring.
Stores up to 1,000 records, enabling detailed data analysis.
Includes functionalities such as a visual fault locator and standard optical power meter.
Compatible with alkaline, lithium, and NiMH batteries, as well as power adapters.

JW3213N

Supports BPON, EPON, and GPON network architectures with synchronized signal measurement.
Allows simultaneous testing of 1310nm upstream and 1490/1550nm downstream signals.
Burst mode testing enhances diagnostic capabilities.
Offers customizable thresholds, file storage, and file naming for streamlined operation.
Real-time status updates with three-color alarm indicators.
Provides optional features like a visual fault locator and standard optical power meter functionalities.
Supports Chinese, English, and an additional language for multi-language usability.
Compatible with lithium, alkaline, or NiMH batteries, and power adapters for flexibility.
Equipped with a USB communication interface for seamless PC integration.
Works with advanced PC software for enhanced control and functionality.

Specifications

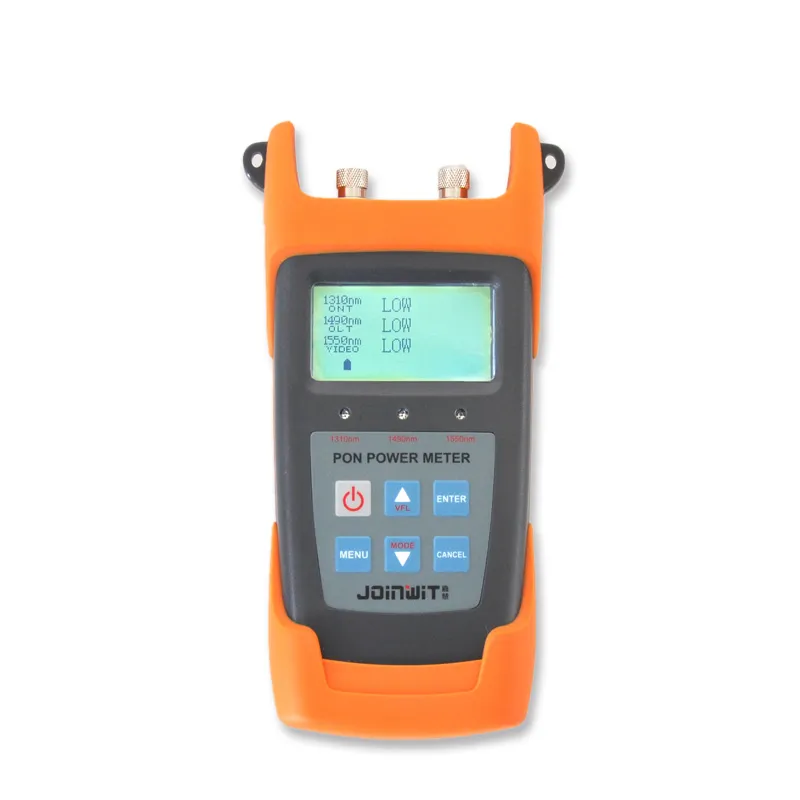

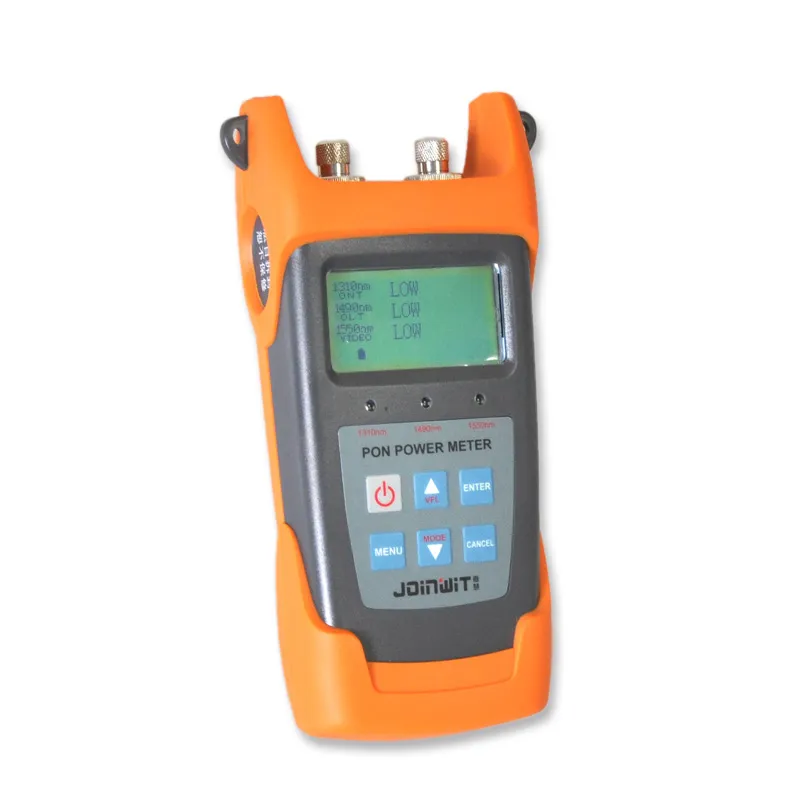

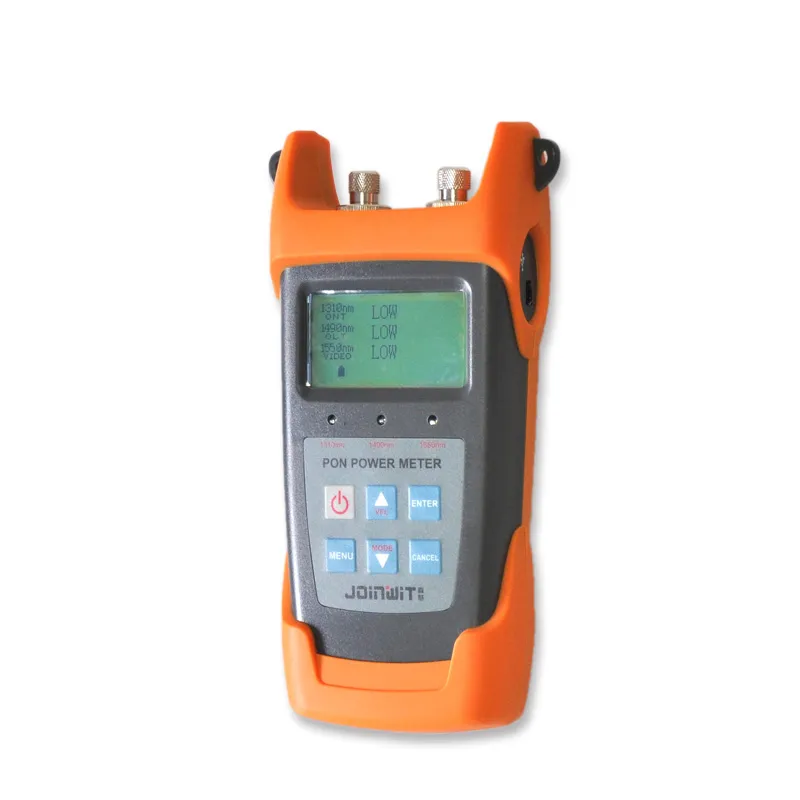

JW3213 Economical PON Power Meter

PON Power Meter
Measurement Wavelength	1310nm 1490nm		1550nm
Measurement Range	+13 to -40dBm	+13 to -50dBm	+25 to -50dBm
Spectral Passband	1310nm ±50nm, 1490nm ±10nm		1550nm ±15nm
Insertion Loss	≤1.5dB
Uncertainty	≤0.5dB

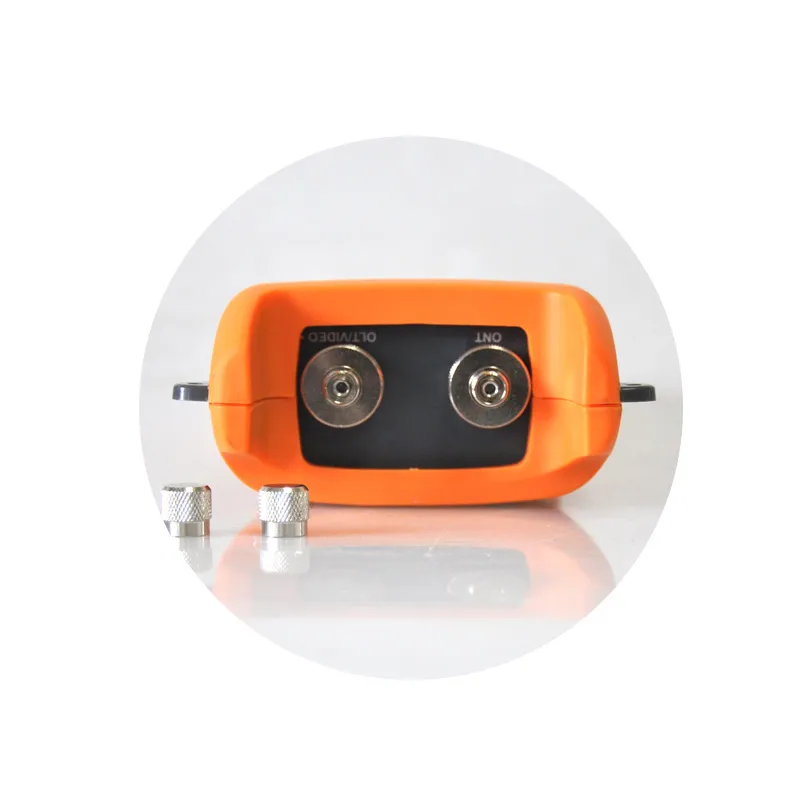

Optical Connector Type	SC/PC (optional)
Display Resolution	0.01dB
Threshold Setting	10 groups
Data Storage	1000 records
General Use Power Meter (Optional)
Measurement Range	+26 to -50dBm
Calibration Wavelength	850/1300/1310/1490/1550/1625nm
Uncertainty	≤0.5dB²
Visual Fault Locator (VFL) (Optional)
Wavelength	650nm
Output Power	10mW
Modulation Frequency	CW/2Hz
General
Operating Temperature	10 to +60℃
Storage Temperature	-25 to +70℃
Relative Humidity	≤75% RH

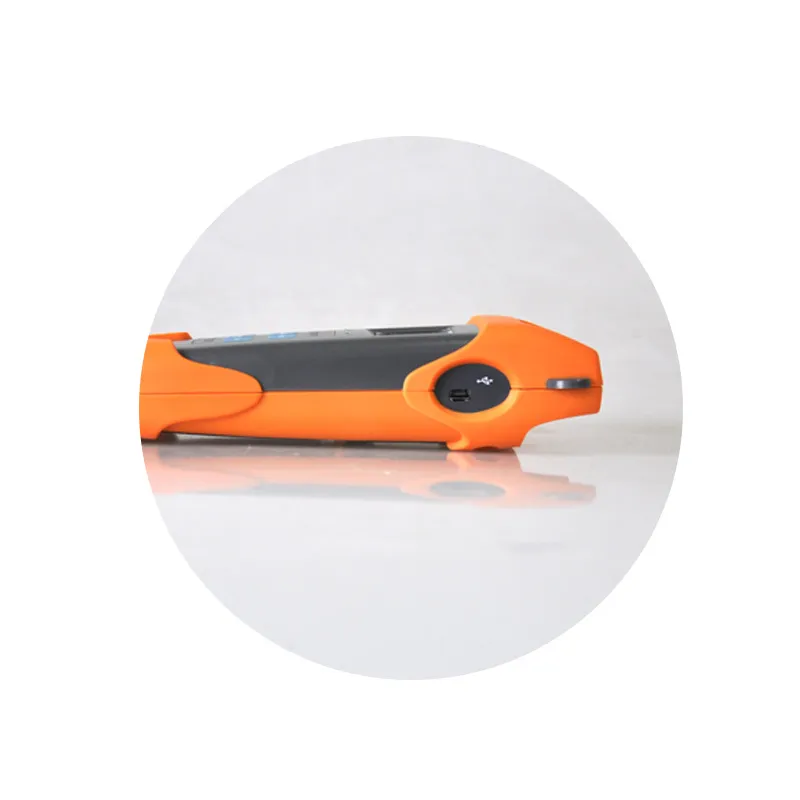

Communication Interface	Mini USB

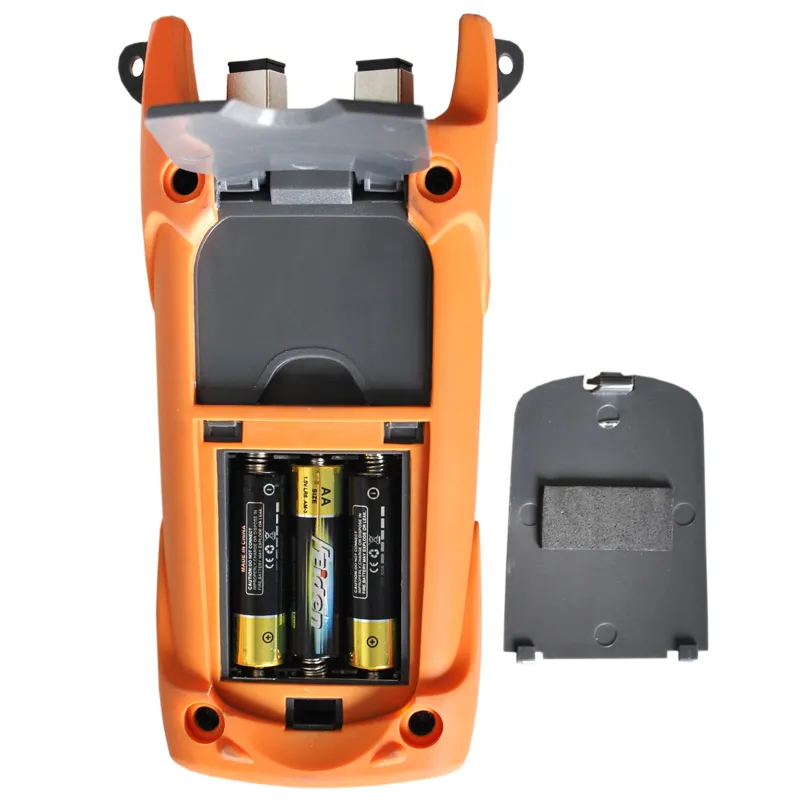

Power Supply	3*AA 1.5V battery, Mini USB power supply adapter (lithium battery optional)
Operating Time	≥80h
Dimensions	192×105×50mm
Weight	300g

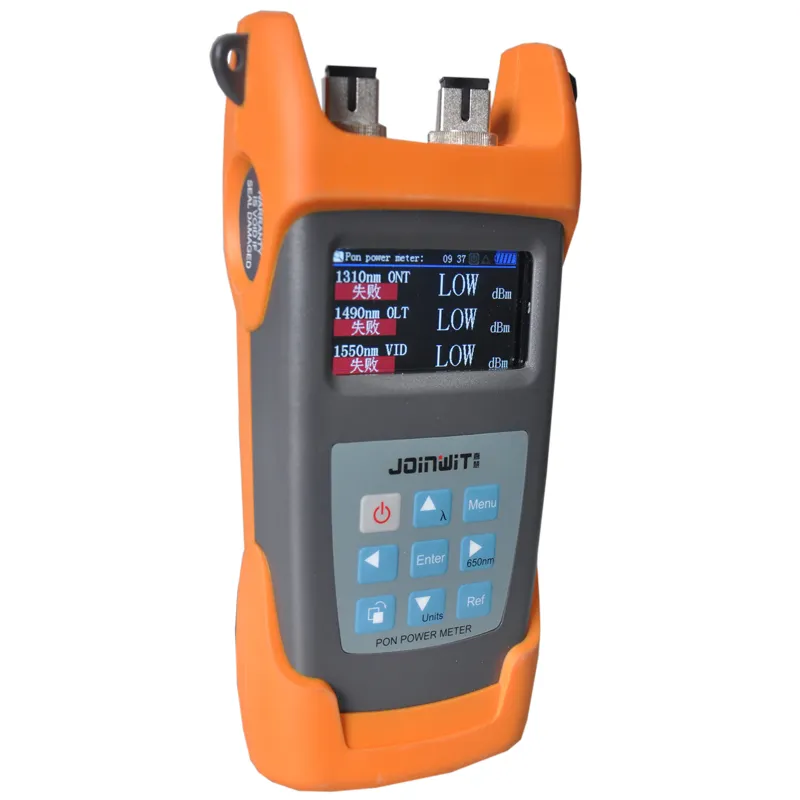

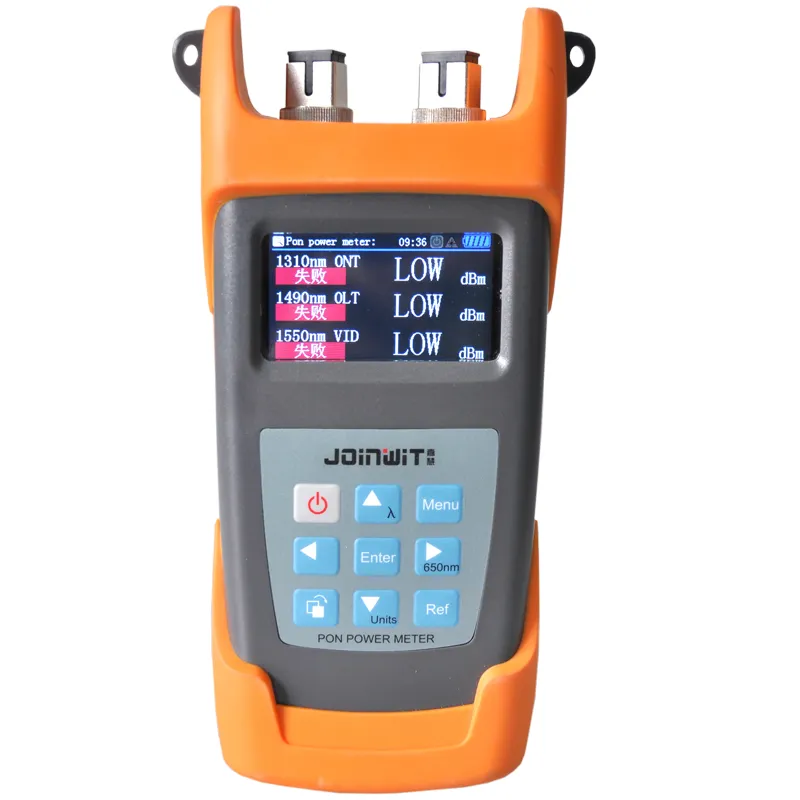

JW3213N Intelligent PON Power Meter

Measurement Wavelength	1310nm upstream	1490nm downstream	1550nm downstream
Measurement Range	+10 to -35dBm	+12 to -40dBm	+25 to -40dBm
Spectral Passband	1310nm ±50nm	1490nm ±15nm	1550nm ±10nm
Isolation 1310nm	/	>40dB	>40dB
Isolation 1490nm	>40dB	/	>40dB
Isolation 1550nm	>40dB	>40dB	/
Uncertainty	≤0.5dB
Calibration Wavelength	1310/1490/1550/1625nm
Display Resolution	0.01dB
Insertion Loss	≤1.5dB
Display	TFT color screen
Optical Connector Type	FC/SC/ST/general connector
Data Storage	1000 records
Power Supply	Lithium battery/3* AA 1.5V battery
Battery Operating Time	≥6h
Operating Temperature	-10 to 60℃
Storage Temperature	-25 to 70℃
Relative Humidity	0 to 95% (non-condensing)
Weight (without battery and module)	423g
Dimensions	192×102×50mm
