MPO Integrated Tester
MPO Integrated Tester MPO Integrated Tester MPO Integrated Tester
JW3502

MPO Integrated Tester

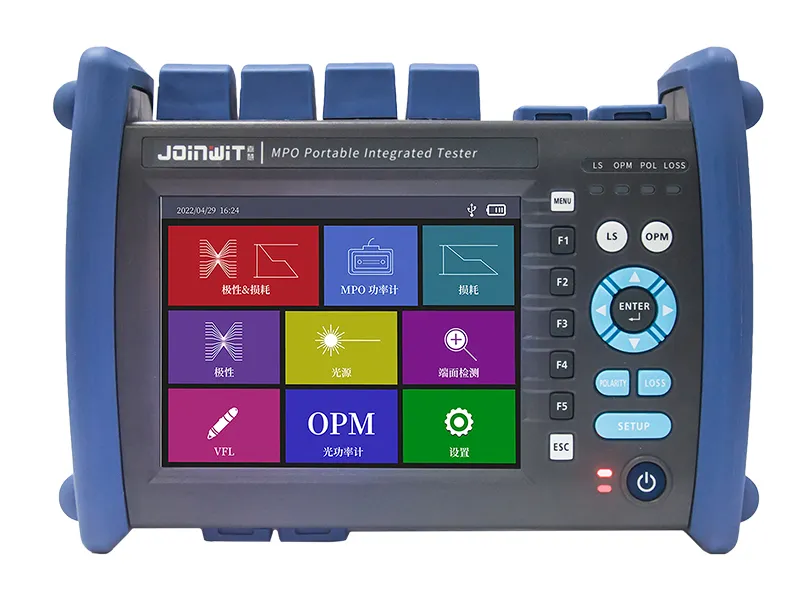

Testing and validating MPO-connected network links becomes faster and more reliable with our MPO integrated testing device, which combines features such as a light source, optical power meter, and end-face inspection module. It supports polarity and loss testing for 24-core MPO links and is backward compatible with 12-core configurations. The 5.6-inch color touch screen makes operation intuitive and efficient, while the integrated end-face inspection function ensures connector cleanliness, reducing potential issues in data transmission. This all-in-one solution is ideal for testing, verifying, and maintaining MPO networks in both data centers and field environments.

Request a Quote
Features
  • Performs polarity and loss testing simultaneously with a single device.
  • Supports testing of 24-core and 12-core MPO link configurations.
  • Includes a 5.6-inch color LCD touch screen for user-friendly operation.
  • Allows users to set custom pass/fail thresholds for flexible testing requirements.
  • Enables remote pairing between two devices for cross-location testing.
  • Supports USB-connected end-face inspection functionality (optional).
Typical Applications
  • Data centers for efficient MPO network testing and validation.
  • Server rooms requiring accurate and reliable link testing.
  • Maintenance and troubleshooting of digital data networks.
  • Optical communication teaching and research.
Specifications
Optical Laser Source (OLS)
Wavelength 850/1300/1310/1550nm (optional)
Output Power ≥-5dBm
Spectrum Width (FWHM) ≤5nm
Frequency CW/270Hz/1kHz/2kHz
Power Stability ≤±0.1
Optical Power Meter (OPM)
Detector Type InGaAs
Calibration Wavelength 850/1300/1310/1550nm
Measurement Range +3 to -50dBm
Power Measurement Linearity ±0.1dB
Measurement Power Uncertainty ±0.25dB
Connector Type MPO Male
Measurement Unit dBm/dB/xW
Resolution 0.01dB
Polarity Detection A/B/C/user defined
Record Storage Yes
General Use Power Meter
Wavelength Measurement Range 800 to 1700nm
Calibration Wavelength 850/1300/1310/1490/1550/1625nm
Measurement Range +26 to -50dBm
Uncertainty ≤0.25dB

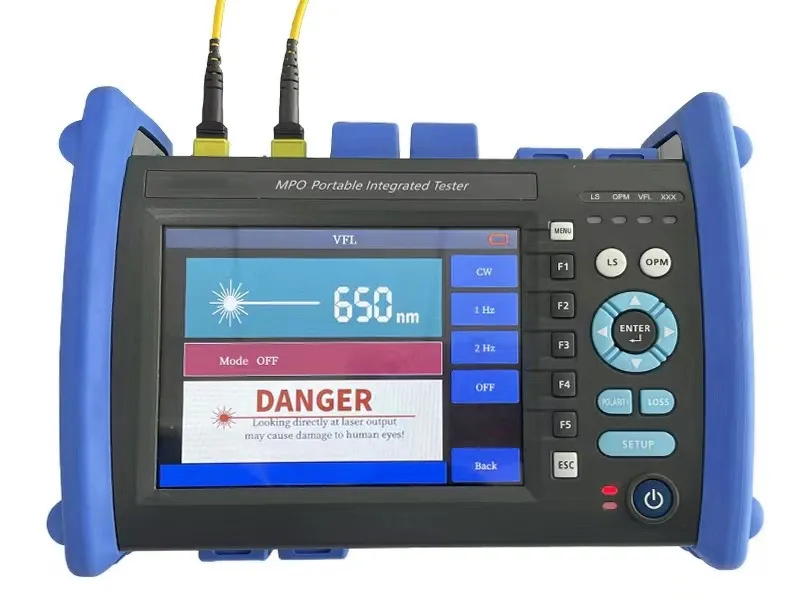

Visual Fault Locator (VFL)
Wavelength 650nm
Output Power 10mW
General
Display 5.6 inch TFT color screen
Power Supply 7.4V5200mAh lithium battery/Micro USB
Automatic Shut-off User-defined time
Low Battery Indication Indicator flashing
Communication Interface Micro USB
Operating Temperature -10 to +60℃
Storage Temperature -25 to +70℃
Dimensions 260×155×73mm
Weight 1250g
