16-in-1 Mini Optical Time-Domain Reflectometer (OTDR)
16-in-1 Mini Optical Time-Domain Reflectometer (OTDR) 16-in-1 Mini Optical Time-Domain Reflectometer (OTDR) 16-in-1 Mini Optical Time-Domain Reflectometer (OTDR) 16-in-1 Mini Optical Time-Domain Reflectometer (OTDR)
JW6601A

16-in-1 Mini Optical Time-Domain Reflectometer (OTDR)

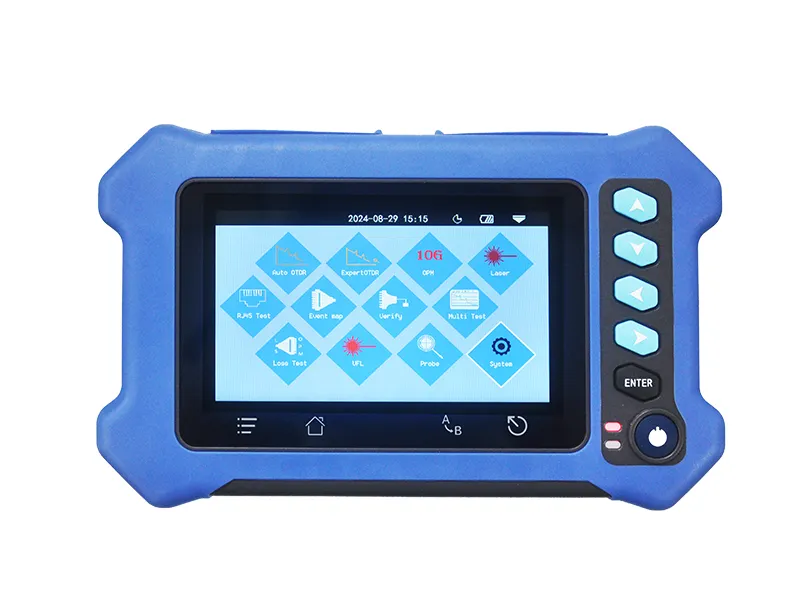

With a 4.3-inch capacitive touchscreen, this versatile OTDR integrates 16 functions, including auto and expert OTDR, event map, optical power meter (OPM), light source (LS), visual fault locator (VFL), RJ45 cable tracker, 10G OPM, optical loss test, ONU state testing, and more. It offers a maximum dynamic range of 28dB and 8GB of internal memory, capable of storing over 200,000 test curves. Powered by a 4000mAh high-density lithium polymer battery, it supports more than 8 hours of continuous operation and can be charged via a power bank for added convenience. The fiber optic testing device measures parameters such as fiber length, loss, and connection quality, making it ideal for FTTx networks, construction projects, maintenance, emergency repairs, and production testing. Its compact design, weighing only 350g, and shock-proof casing ensure reliable performance in field environments.

Request a Quote
Features
  • 4.3-inch capacitive touchscreen for intuitive operation.
  • Includes optical power meter (OPM) and light source (OLS) functions.
  • Long standby time of up to 20 hours with the built-in battery.

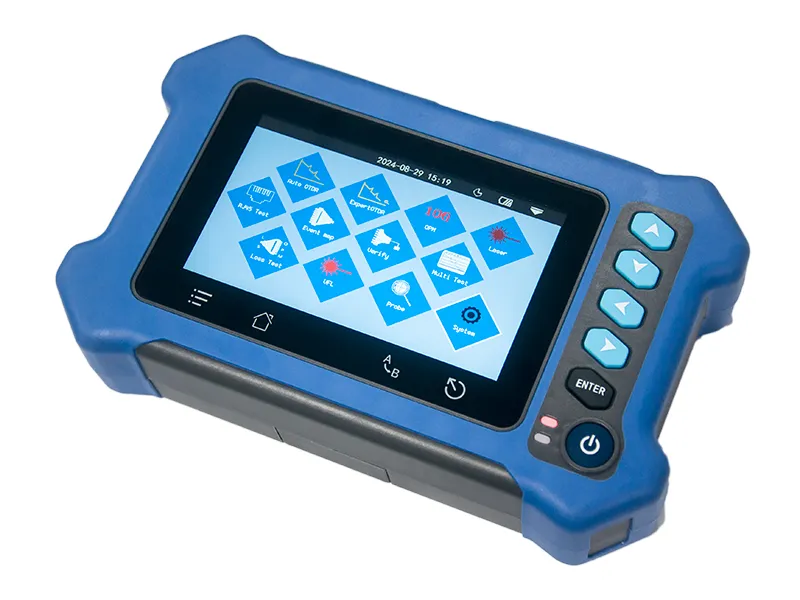

  • Compact and lightweight body, weighing just 350g.
  • Equipped with a visual fault locator (VFL) for quick troubleshooting.
  • Supports one-key automatic testing for ease of use.

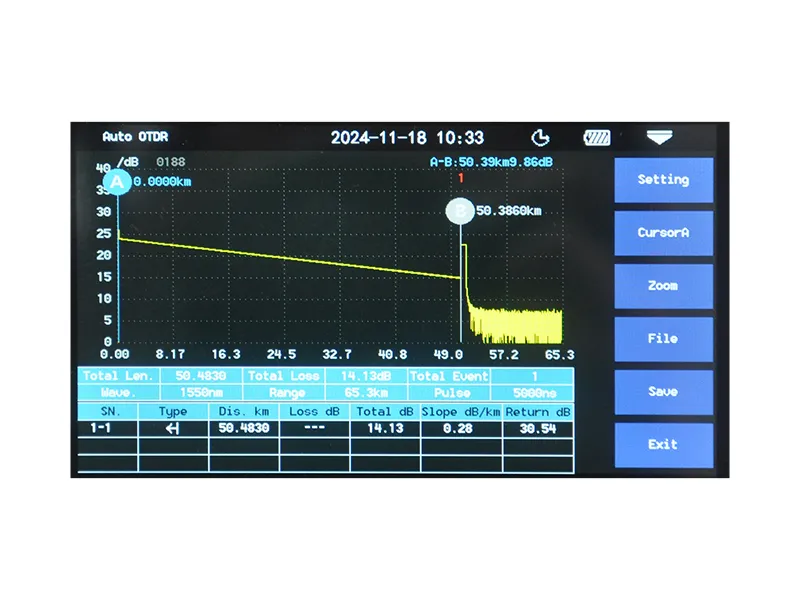

  • Event map functionality simplifies data visualization.

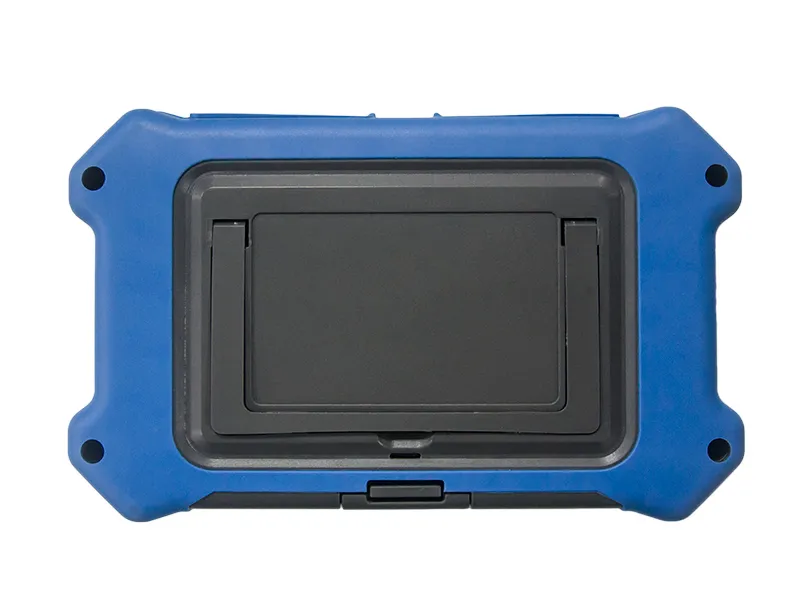

  • Durable shock-proof and drop-resistant casing.
  • RJ45 cable sequence testing capability.
  • Integrated lighting and flashlight functions for use in low-light environments.
  • USB charging and power bank compatibility for extended field use.
  • Conducts optical loss tests, multi-tests, and 10G OPM measurements (1490/1577nm).
  • ONU resources and optional probe accessories expand its applications.
Specifications
Optical Time-Domain Reflectometer (OTDR)
Wavelength 1310/1550nm or 1310/1550/1625nm ±20nm
Fiber Type G.652 SM Fiber
Dynamic Range 28dB/26dB
Event Blind Zone 3m
ATT Blind Zone 8m
Test Range 5m-80km
Pulse Width 5ns to 10us
Ranging Accuracy ±(1m + sampling interval + 0.005% × test distance)
Linearity ±0.2dB/dB
Sampling Points 16k to 128k
Sampling Resolution 0.05m to 8m
Reflection Accuracy ±3dB
Data Storage Internal: ≥600 External: TF card
Laser Safety Level Class Ⅱ
File Format SOR standard file format
Optical Connector Type FC/UPC (interchangeable SC, ST)
10G Optical Power Meter (OPM)
Calibration Wavelength 1490nm 1577nm
Measurement Range +10 to -40dBm +10 to -41dBm
Isolation 1577nm: >35dB 1490nm: >35dB
Uncertainty ±5% ±5%
Interface Type FC/SC/ST FC/SC/ST
Optical Power Meter (OPM)
Wavelength 800nm to 1700nm
Calibration Wavelength 850/980/1300/1310/1490/1550/1625/1650nm
Measurement Range -50dBm to +26dBm
Uncertainty ±5%
Optical Connector Type FC/SC/ST
Optical Light Source (OLS)
LD Type FP-LD
Output Wavelength 1310/1550nm ±20nm
Output Power ≥-5dBm
Modulation Frequency CW/270Hz/1kHz/2kHz
Stability CW, ±0.5dB/15min (tested after 15min warm-up)
Optical Connector Type FC/UPC (interchangeable SC, ST)
Visual Fault Locator (VFL)
Wavelength 650nm ±20nm
Output Power ≥10mW
Operating Mode CW/1kHz/2kHz
Optical Connector Type FC/SC/ST
RJ45 Cable Tracker
Mode Digital tracking
Distance ≤300m
Online/Line Pair Tracking Support
Optical Loss Test
Wavelength Consistent with OLS
IL Test Support
RJ45 Cable Length
Distance < 300m
General
Display 4.3 inch color LCD screen
Data Interface Micro USB
External Storage TF Card
Power Supply Polymer Li-battery: 3.7V,4000mAh
Power supply adapter: 5V DC, 2A
Battery Life Standby: >20h Measuring time: >12h
Operating Temperature -10℃ to +50℃
Storage Temperature 40℃ to +70℃
Relative Humidity 0 to 95% (non-condensing)
Weight ≤400g
Dimensions 180×11×44mm
