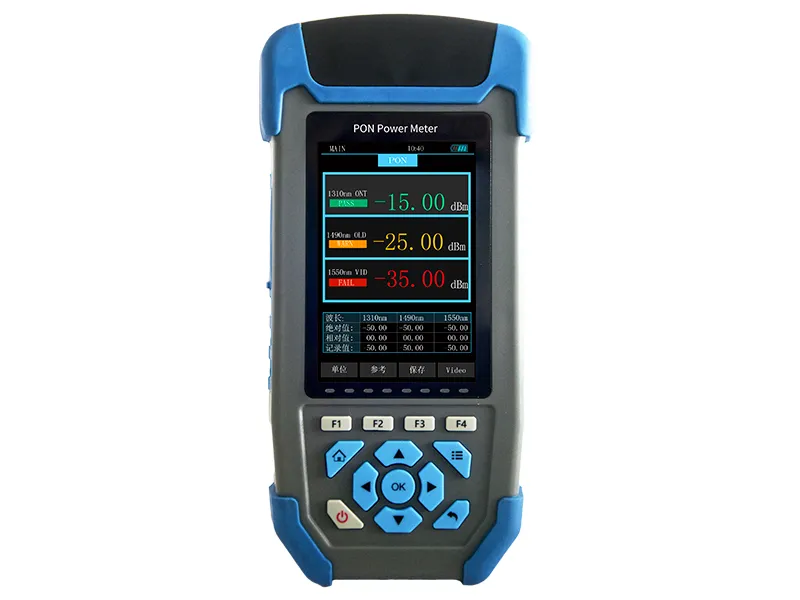

PON Power Meter

JW3330

This PON power meter is designed for FTTx network operations and maintenance, combining advanced features into a compact 3.5-inch TFT display device. The robust, ergonomic casing is built to withstand shocks and drops, ensuring reliability in demanding environments. Its integrated functionality includes PON power measurement, a wide-range optical power meter, a visual fault locator, and an RJ45 cable tester. These features make it an essential tool for PON network construction and maintenance, enabling simultaneous testing of 1310nm upstream and 1490nm & 1550nm downstream signals with ease.

Request a Quote

Features

Simultaneous measurement of 1310nm upstream and 1490nm & 1550nm downstream signals.
Supports burst mode testing, with optional visual fault locator and standard optical power meter functions.
Handles voice, data, and video signals in BPON, EPON, and GPON architectures.
Customizable thresholds, file storage, and filename editing for streamlined operation.
Offers multi-language support, including Chinese, English, and one additional language.
Flexible power options with lithium battery and adapter compatibility.
USB interface for PC connectivity and software integration.
Real-time status monitoring with three-color alarm indicators.

Specifications

PON Mode
Measurement Wavelength	1310nm upstream	1490nm downstream	1550nm downstream
Spectral Passband	1310nm ±50nm	1490nm ±15nm	1550nm ±10nm
Isolation 1310nm	/	≥40dB	≥40dB
Isolation 1490nm	≥40dB	/	≥40dB
Isolation 1550nm	≥40dB	≥40dB	/
Measurement Range	+10 to -40dBm	+12 to -40dBm	+25 to -40dBm
Uncertainty	≤0.5dB
Insertion Loss	≤1.5dB
Display Resolution	0.01dB
Optical Connector Type	(FC/SC)/PC
Optical Power Meter (OPM)

Measurement Range	+10 to -70dBm, +26 to -50dBm
Uncertainty	≤0.5dB
Calibration Wavelength	1310/1490/1550/1625nm
Measurement Unit	dBm/dB/xW
Linearity (dB)	≤0.1dB
Display Resolution	0.01dB
Visual Fault Locator (VFL) (Red Light)
Wavelength	650nm ±20nm
Modulation Frequency	CW/1Hz/2Hz
Output Power	≥1mW
RJ45 Cable Sequence	One-click automatic testing
General
Display	3.5 inch TFT color screen
Power Supply	Rechargeable 3.7V lithium battery/Micro USB
Communication Interface	Micro USB
Battery Operating Time	≥20h
Operating Temperature	-20 to +50℃
Storage Temperature	-30 to +70℃
Relative Humidity	0 to 95% (non-condensing)
Weight	395g
Dimensions	188×88×44mm
