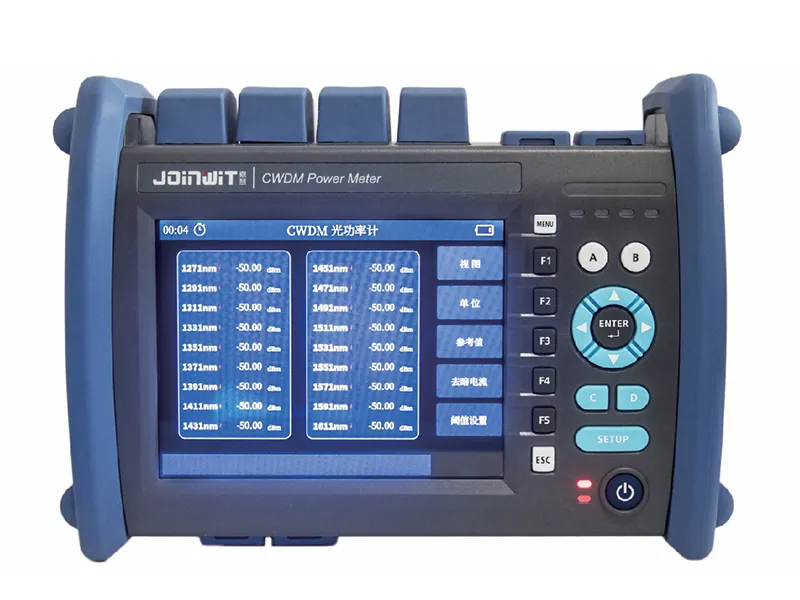

Optical CWDM Power Meter
JW3505

Optical CWDM Power Meter

This power meter is tailored for CWDM networks, providing accurate measurement and display of optical power and attenuation values across 18 channels, covering wavelengths from 1271nm to 1611nm. It simplifies tasks such as network installation, testing, and maintenance, offering reliable performance in various CWDM applications. The 5.6-inch touchscreen enhances usability, and its dual-port design allows for seamless testing without interrupting active communication systems.

Request a Quote
Features
  • Intuitive 5.6-inch touchscreen ensures clear data visualization and simple operation.
  • Measures optical power and attenuation for up to 18 CWDM wavelengths simultaneously.
  • Dual-port design supports testing and monitoring without disrupting communication.
  • Flexible data display in bar graph or list format for detailed analysis.
  • Customizable threshold settings allow for user-defined limit testing.
  • Built-in data storage for recording and reviewing test results.
Typical Applications
  • Engineering and maintenance of CWDM fiber optic communication systems.
  • Research and production of optical components.
  • Fiber optic sensing and advanced detection applications.
Specifications
Wavelength Range 1271 to 1611nm
Number of Channels 18
Channel Spacing 20nm
Measurement Range +10 to -40dBm
Uncertainty 0.5dB
Display Resolution 0.01dB
Serial Test Loss ≤1.5dB
Optical Connector Type FC/SC/PC (optional)
Display 5.6 inch TFT color screen
Power Supply 7.4V5200mAh lithium battery/power supply adapter 122A
Automatic Shut-off User-defined time
Low Battery Indication Indicator flashing
Communication Interface Micro USB
Operating Temperature -10 to +60℃
Storage Temperature -25 to +70℃
Dimensions 260×155×73mm
Weight 1200g
