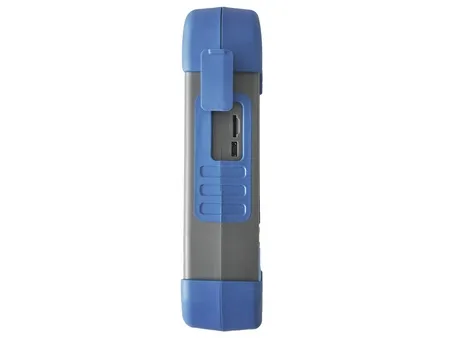

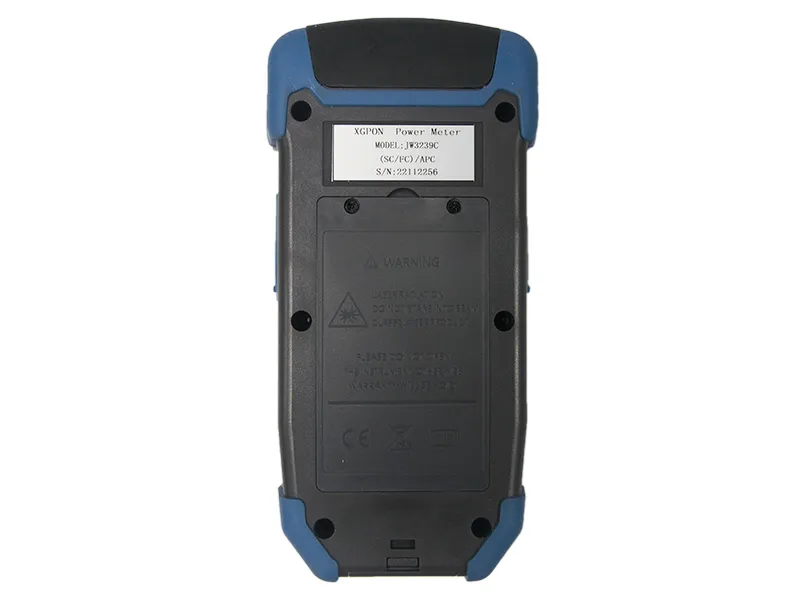

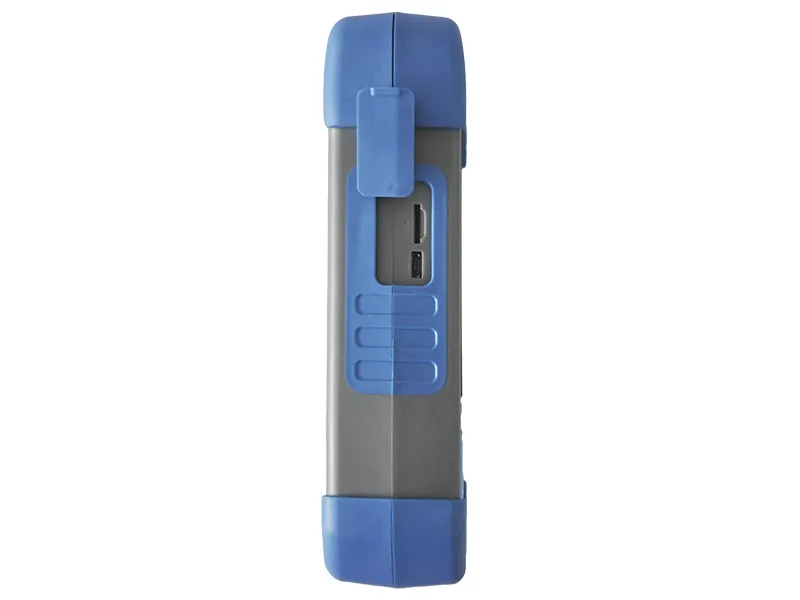

10G PON Power Meter

JW3239C

As FTTx networks evolve to meet increasing demands, precise power measurement becomes critical for maintaining performance and reliability. This power meter not only supports traditional PON functions but also incorporates advanced XGPON and 10GEPON power measurement capabilities, addressing the needs of next-generation fiber networks. With customizable threshold settings, it enables users to evaluate optical power levels with precision and ensure compliance with network standards. Designed for deployment, testing, and maintenance, this metering tool is a necessary asset for operators managing both legacy and advanced infrastructures, facilitating seamless network performance and scalability.

Request a Quote

Specifications

PON Mode
Measurement Wavelength	1310nm	1490nm	1550nm
Measurement Range	+10 to -40dBm	+10 to -40dBm	+25 to -40dBm
Spectral Passband	1310nm ±50nm	1490nm ±10nm	1550nm ±30nm
Isolation	1490nm waveband >40dB	1310nm waveband >40dB	1490nm waveband >40dB
	1550nm waveband >40dB	1550nm waveband >40dB	1550nm waveband >40dB
XGPON/10GEPON Mode
Measurement Wavelength	1270nm		1577nm
Measurement Range	+10 to -40dBm		+10 to -40dBm
Isolation	1577nm waveband >40dB		1270nm waveband >40dB
General
Pass-through Insertion Loss	≤1.5dB
Uncertainty	≤0.5dB
Display Resolution	0.01dB
Threshold Setting	10 groups
Data Storage	1000 records
Operating Temperature	-10℃ to +60℃
Relative Humidity	0% to 95% RH

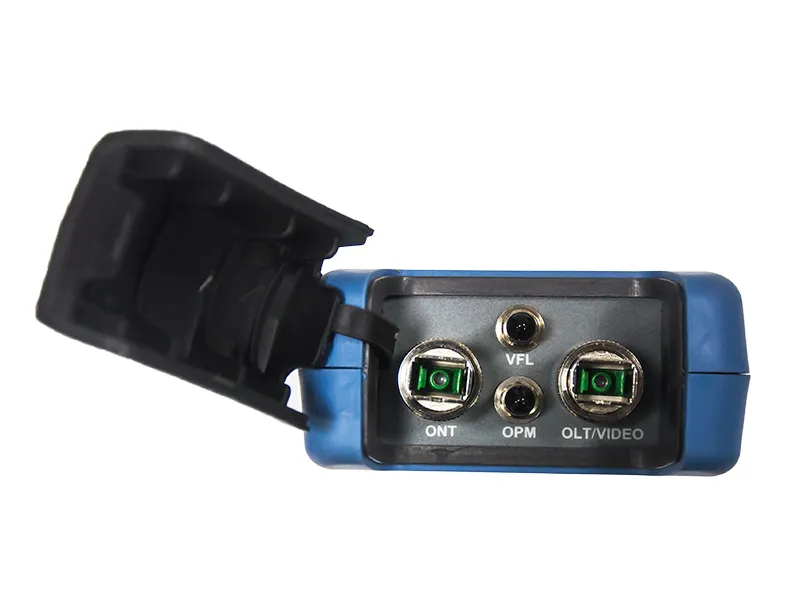

Optical Connector Type	SC/PC (APC optional)
Communication Interface	USB interface
Power Supply	3* AA1.5V battery
Operating Time	≥20h (continuous working) ≥60h (standby)
Dimensions (L×W×H)	192×102×50mm
Weight	420g
