JW3306E

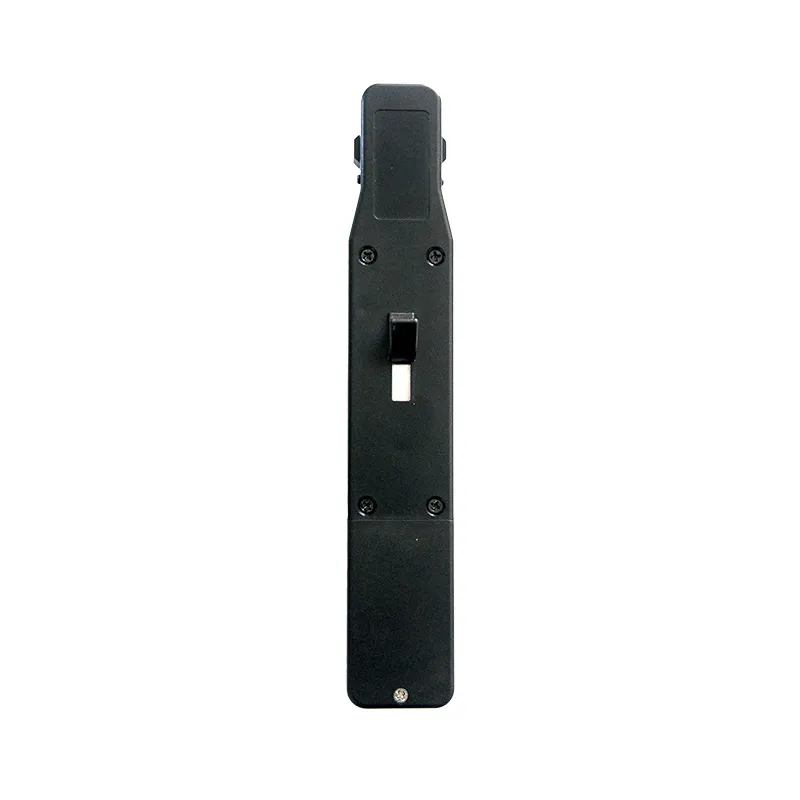

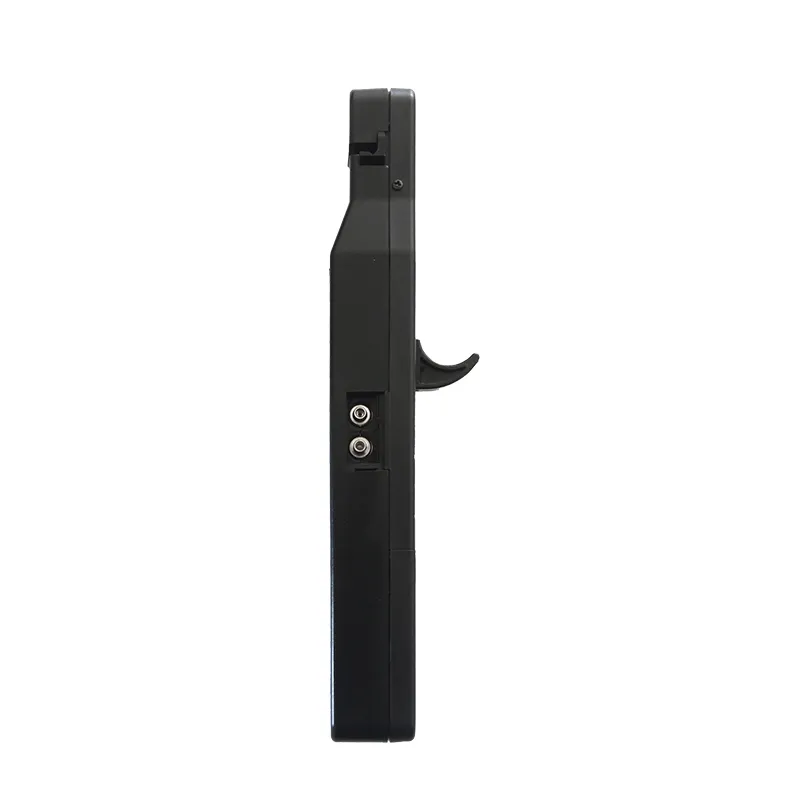

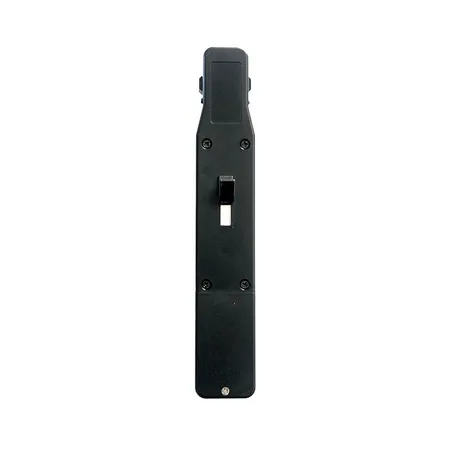

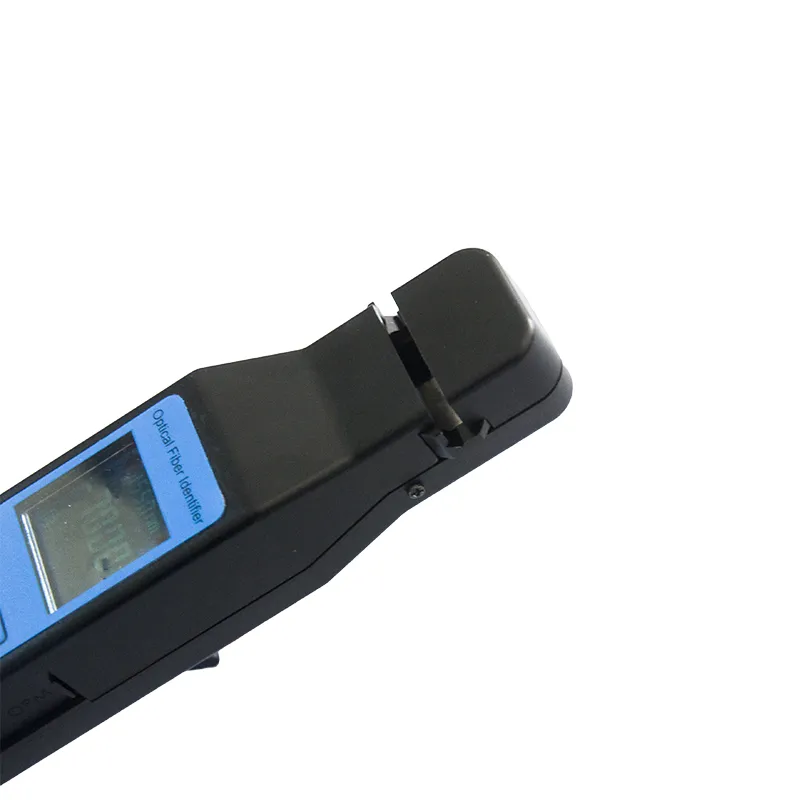

Handheld Optical Fiber Identifier

This handheld optical fiber identifier combines the capabilities of conventional fiber identifiers with advanced features for efficient network maintenance and testing. It allows non-destructive signal detection at any point on single-mode and multi-mode fibers, making it ideal for construction, troubleshooting, and maintenance tasks. The optical fiber identifier also integrates an optical power meter module and a red-light visual fault locator (VFL) for enhanced functionality.

Request a Quote
Features
  • Clear display on a color screen for easy operation and data visualization.
  • Metal-built, four-in-one test fixture compatible with 250μm, 900μm, and 2–3mm fiber types.
  • Supports in-line testing for power direction and frequency detection.
  • Low insertion loss and wide dynamic range ensure accurate results.
  • Integrated standard power meter functionality, including frequency detection.
  • Built-in red light visual fault locator (VFL) for identifying breaks and faults in fibers.
Specifications
Optical Fiber Identifier (OFI)
Wavelength Range 800 to 1700nm
Detector Type InGaAs
Applicable Fiber 250um/900um/2mm/3mm
Modulation Frequency CW/270Hz/1kHz/2kHz
Signal Display Detection Range +13 to -50dBm
Signal Direction Detection Range (Typical) +13 to -35dBm
Signal Frequency Indication 270Hz/1kHz/2kHz
Signal Frequency Detection Range (Typical) +13 to -30dBm
Optical Power Meter (OPM)
Measurement Wavelength 850/1300/1310/1490/1550/1625nm
Power Measurement Range +26 to -50dBm
Measurement Unit dBm/dB/xW
Resolution 0.01dB
Uncertainty ≤0.5dB
Interface Type Ø2.5mm universal connector
Visual Fault Locator (VFL)
Wavelength 650±10nm
Output Power ≥10mW
Interface Type Ø2.5mm universal connector
General
Display Color LCD
Power Supply 2*1.5VAA batteries
Operating Temperature -20 to +60℃
Storage Temperature -30 to +70℃
Dimensions 220×38×28mm
Weight (without battery) 145g
