JW3306B

Digital Optical Fiber Identifier

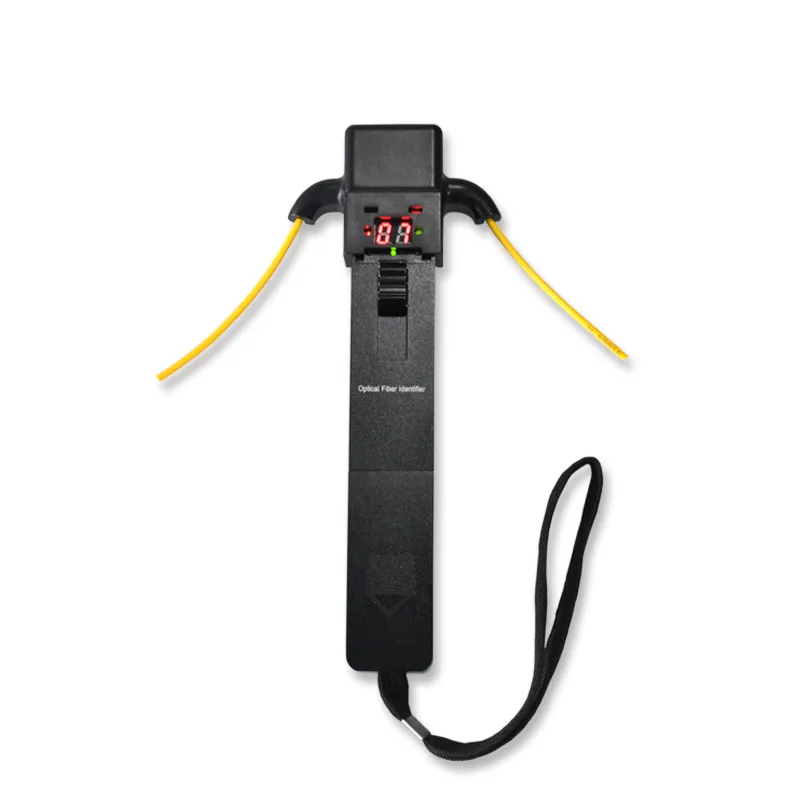

Accurately locating specific fibers without interrupting service is a critical task during network installation, maintenance, and troubleshooting. This handheld digital fiber identifier enables non-destructive testing at any point on single-mode and multi-mode fibers. By injecting modulated signals at 1310nm or 1550nm (270Hz, 1kHz, or 2kHz) into one end of the fiber, it allows users to pinpoint and identify the exact fiber along the line. In addition to detecting signals, the identifier measures optical power levels and determines signal direction, ensuring precise results even in complex environments like active networks.

Request a Quote
Features
  • Its digital display shows relative optical power values for clear and accurate readings.
  • Supports in-line testing without interrupting ongoing network services.
  • Recognizes modulated signals at 270Hz, 1kHz, and 2kHz.
  • Equipped with a cover the blocks light which improves accuracy when working in bright outdoor conditions.
  • One-touch operation simplifies testing and increases efficiency in the field.

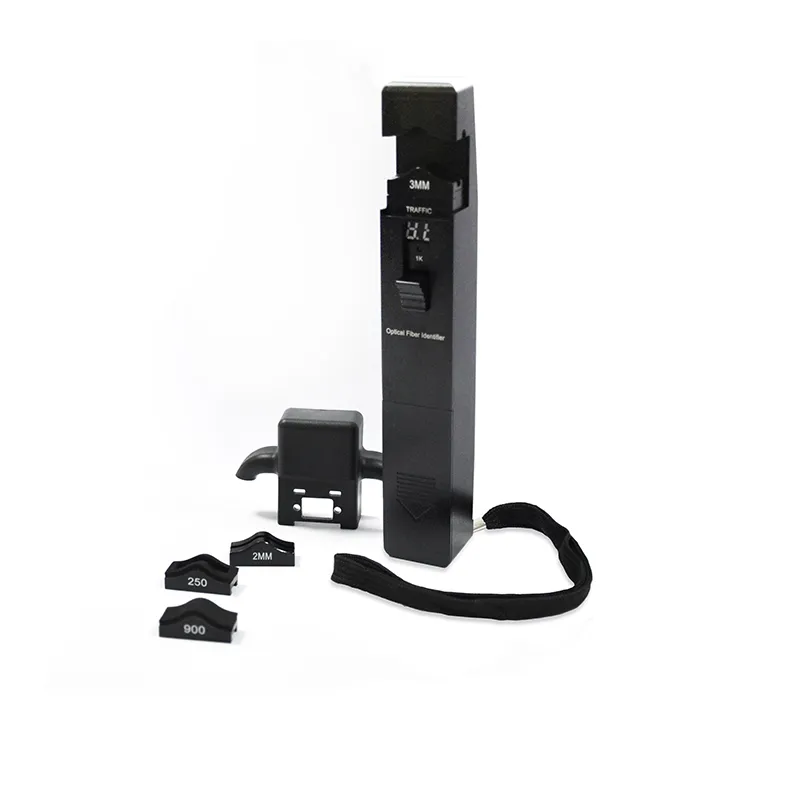

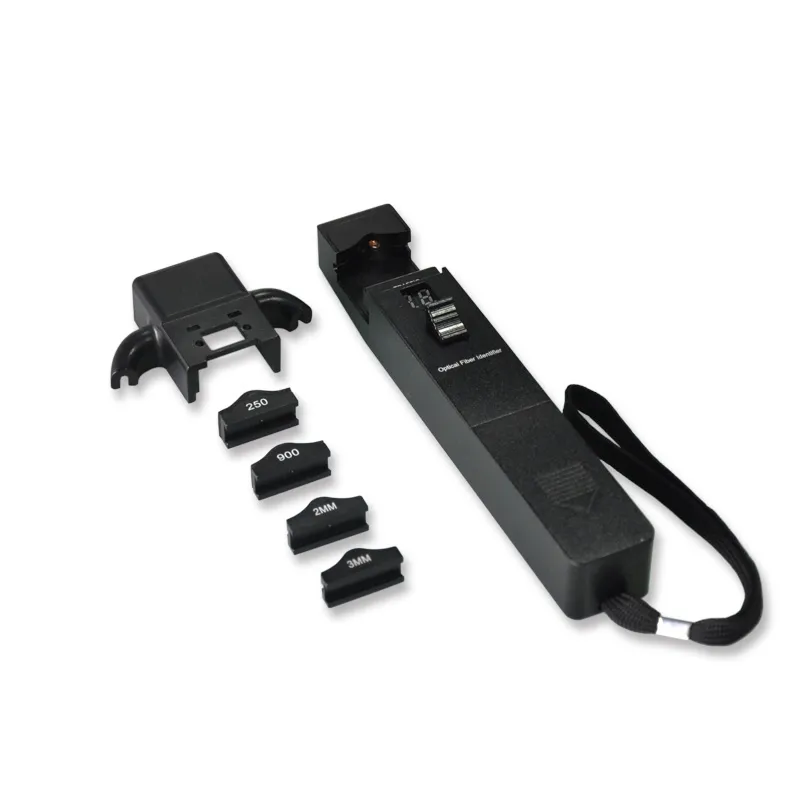

  • Includes four interchangeable adapters to support bare fiber, 0.9mm, 2mm, and 3mm coated fibers.
  • Mechanical damping and self-locking positioning ensure the fiber remains undamaged during testing.
Specifications
Wavelength Range 800 to 1700nm
Detector Type InGaAs
Applicable Fiber Ø0.25mm (bare fiber)
Ø0.9mm, Ø2.0mm, Ø3.0mm (pigtail) 		Common Adapter
Modulation Frequency CW/270Hz/1kHz/2kHz CW/270Hz/1kHz/2kHz
Signal Direction Indication Left and right LED indicators Left and right LED indicators
Signal Direction Detection Range
(CW/0.9mm bare fiber) 		-46 to 10dBm (1310nm) >-30dBm
-50 to 10dBm (1550nm)
Signal Power Detection Range
(CW/0.9mm bare fiber) 		-50 to 10dBm >-30dBm
Signal Frequency Indication 270Hz/1kHz/2kHz 270Hz/1kHz/2kHz
Signal Frequency Detection Range (Average) Ø0.9,Ø2.0,Ø3.0 >-20dBm
-30 to 0dBm (270Hz/1kHz) -25 to 0dBm (2kHz)
Ø0.25
-25 to 0(270Hz,1kHz)-20 to 0 (2kHz)
Insertion Loss (Typical) 0.8dB (1310nm) 2.5(1550nm)
Visual Fault Locator (VFL) No Support
Red Light Output Power No 1mW (10mW optional)
Operating Temperature 10 to +40℃
Storage Temperature -25 to +70℃
Battery Operating Time 10h 10h
Dimensions 196×30.5×27mm 230×43×36mm
Alkaline Battery 9V 2*AA alkaline battery
Weight 200g 200g
