High Precision Optical Power Meter
High Precision Optical Power Meter High Precision Optical Power Meter High Precision Optical Power Meter
JW3220

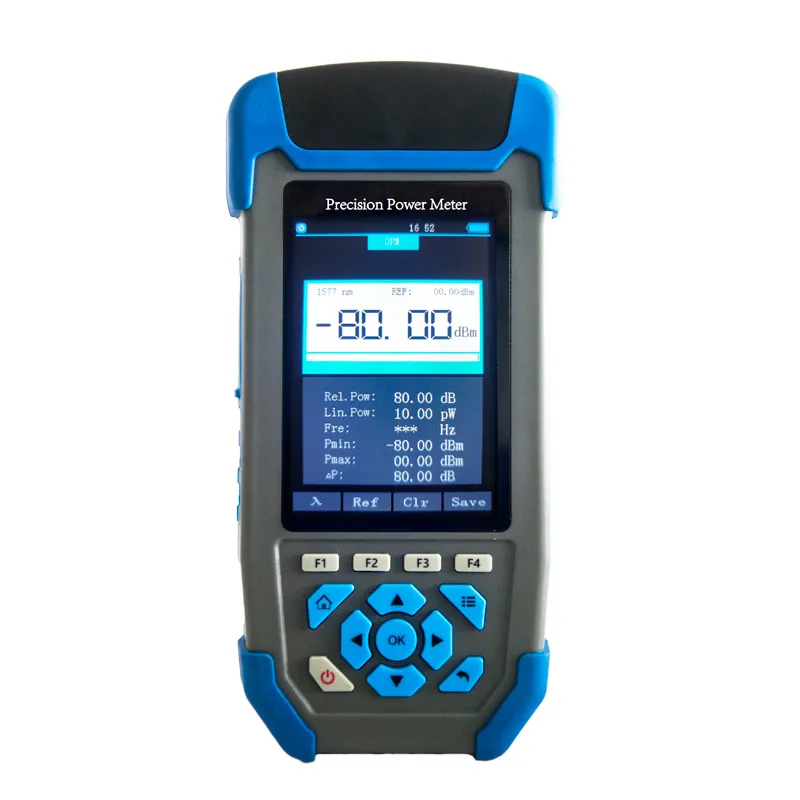

High Precision Optical Power Meter

The optical power meters are designed to deliver precise measurements and versatile functionality, making then an essential tool for various fiber optic applications. These power metering devices offer a wide dynamic range of 90dB and excellent linearity, enabling accurate measurements across various applications. Our high precision optical power meters include features such as customizable threshold alarms, real-time monitoring of power variations (PMAX/PMin), frequency signal detection, and a built-in visual fault locator for efficient troubleshooting. When paired with compatible light sources, they automatically identify emitted wavelengths, simplifying link loss testing. Data storage and upload capabilities make it easy to analyze results and integrate with existing systems, while its standard communication interface supports further development or system embedding. These fiber optic testing devices are ideal for professionals in fiber optic engineering, digital data network maintenance, and telecommunications education.

Request a Quote
Features
  • Equipped with a 3.5-inch TFT color display for clear, intuitive operation.
  • Wide 90dB dynamic range for precise and reliable measurements.
  • Supports up to 45 calibration wavelengths to meet diverse testing needs.
  • Configurable threshold settings with pass/fail alarms for streamlined monitoring.
  • Automatic wavelength identification enhances efficiency during testing.
  • Real-time monitoring of maximum and minimum power levels.
  • Frequency signal detection for advanced diagnostics.
  • Real-time data retrieval for easy system integration or analysis.
  • Built-in visual fault locator simplifies fiber troubleshooting.
  • Stores up to 300 data entries for detailed performance tracking.
Typical Applications
  • Maintenance and troubleshooting of fiber optic networks.
  • Diagnostics in digital data network engineering.
  • Research and training in telecommunications and fiber optics.
  • General fiber optic engineering projects requiring precision tools.
Specifications
Optical Power Meter (OPM)
Detector Type InGaAs/Si
Detector Size Ø2.0mm
Wavelength Measurement Range 800 to 1700nm, 400 to 1100nm
Measurement Range +10 to -80dBm, +26 to -65dBm
Default Calibration Wavelength 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm
Total Calibrate Wavelengths Support up to 45
Minimum Display Resolution 0.0001dB
Uncertainty ≤0.13dB
Linearity ≤0.05dB (+10dBm to -60dBm)
≤0.1dB (-60dBm to -70dBm)
Frequency Identification 270Hz/330Hz/1kHz/2kHz
Measurement Unit dBm/dB/xW

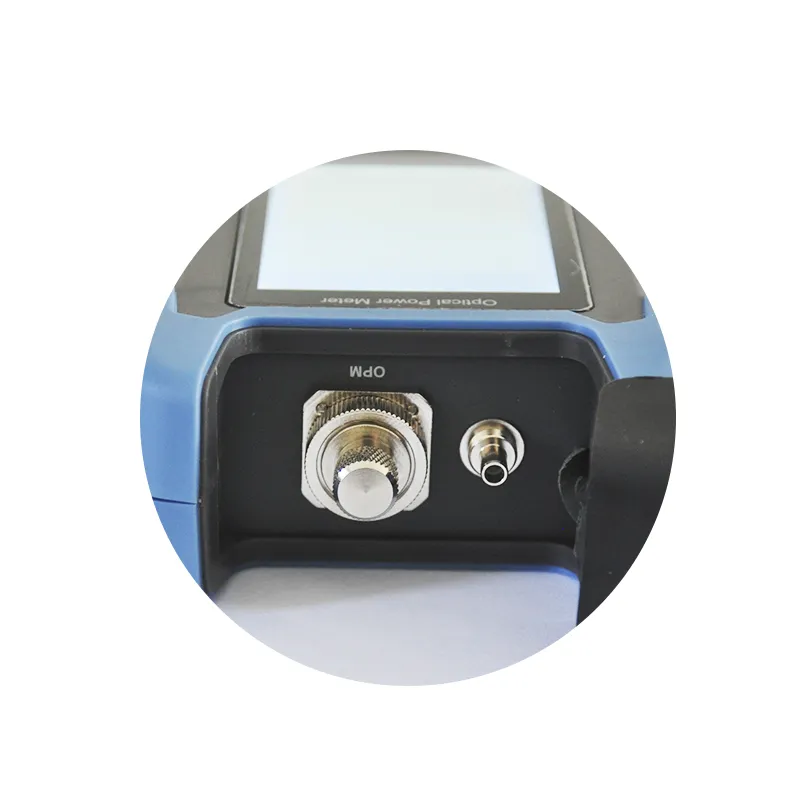

Optical Connector Type FC/SC/ST/LC, Ø2.5mm/Ø1.25mm
Display 3.5 inch TFT color screen
Visual Fault Locator (VFL)
Wavelength 650nm
Output Power 10mW
General
Power Supply 3.7V 4000mAh lithium battery/Micro USB
Automatic Shut-off 10min

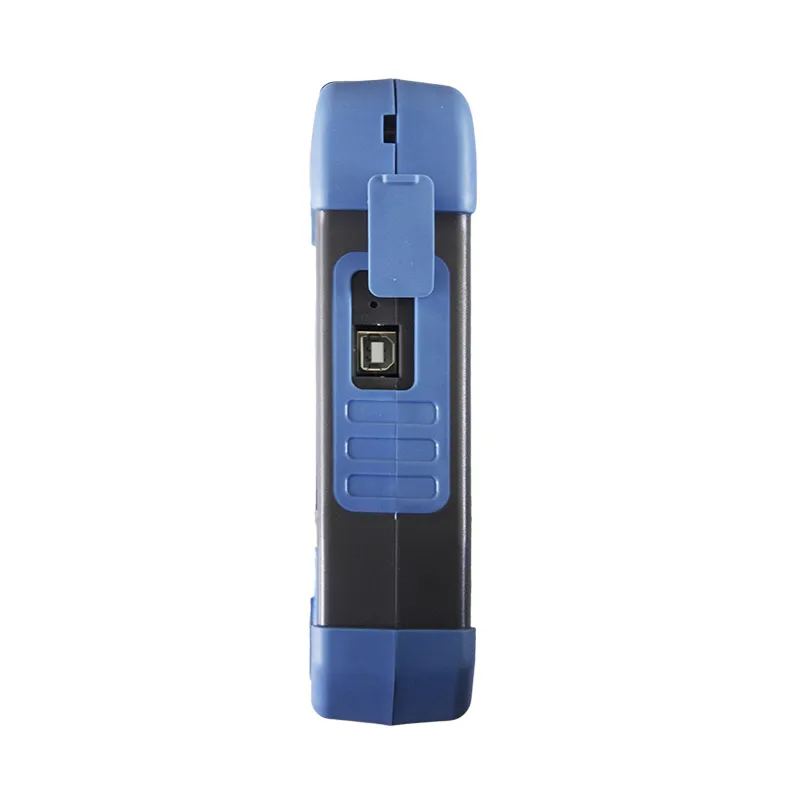

Communication Interface Micro USB/USB TypeB (optional)
Operating Temperature -10 to +60℃
Storage Temperature -25 to +70℃
Dimensions 188×88×44mm
Weight 370g

Notes: the above specifications are tested at T=23±2℃
1. Tested at 1550nm-10dBm
2. Tested at 1550nm wavelength
3. Detection power is greater than -40dbm
