Handheld Optical Power Meter
Handheld Optical Power Meter Handheld Optical Power Meter Handheld Optical Power Meter Handheld Optical Power Meter

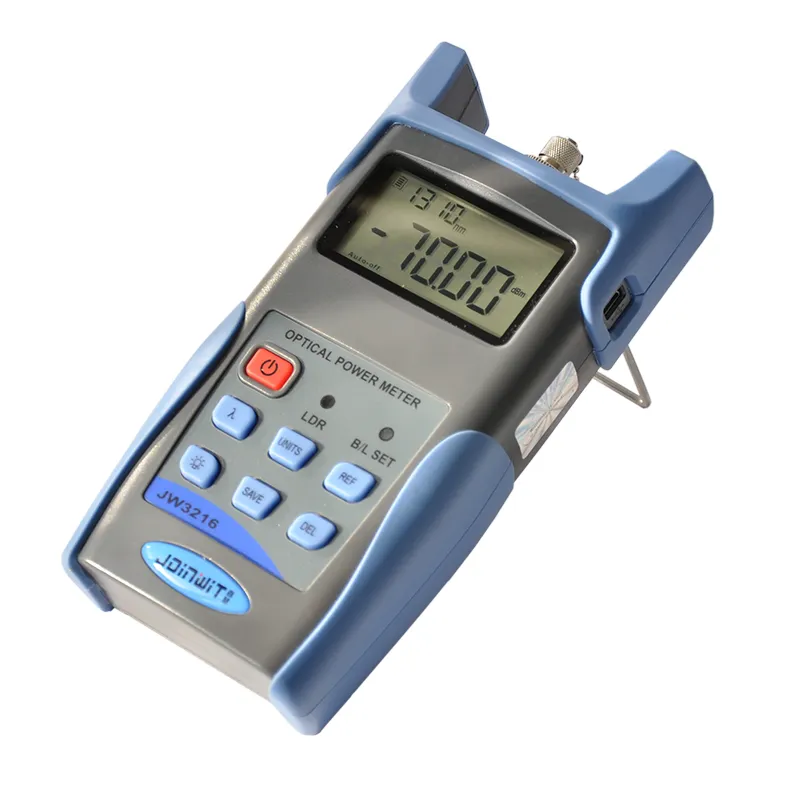

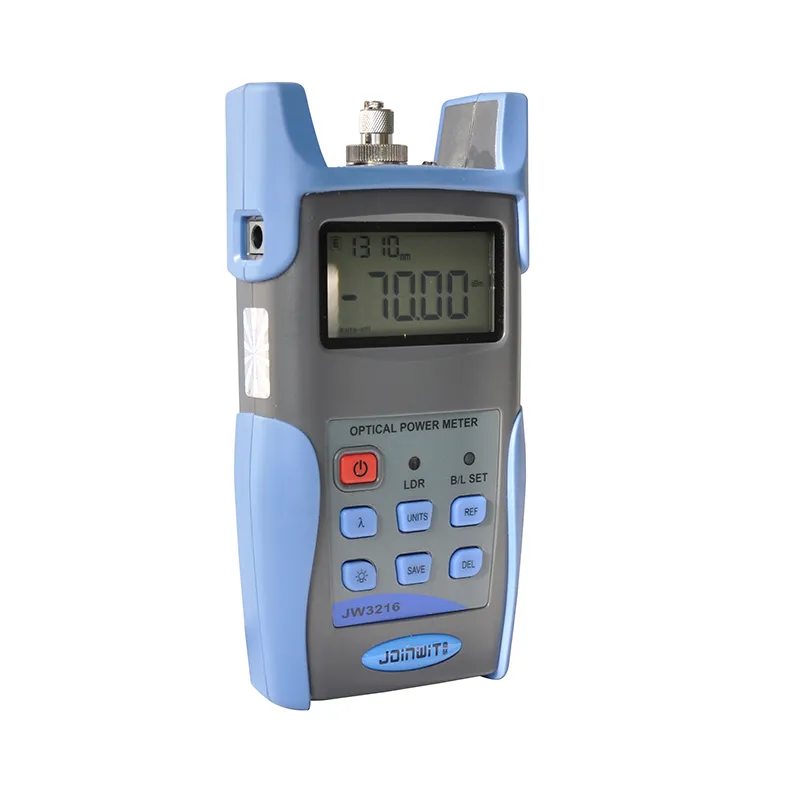

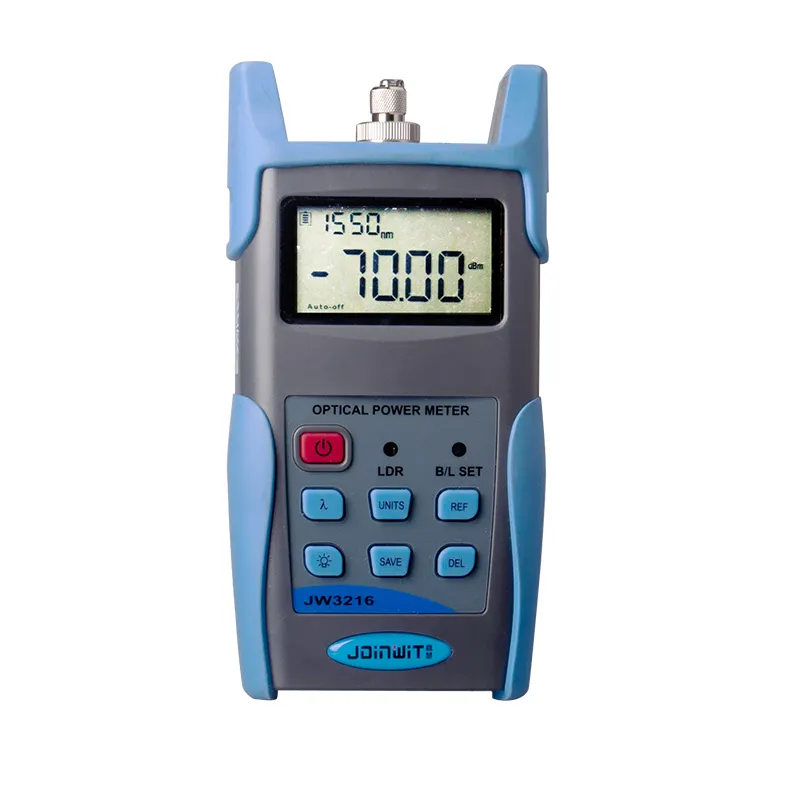

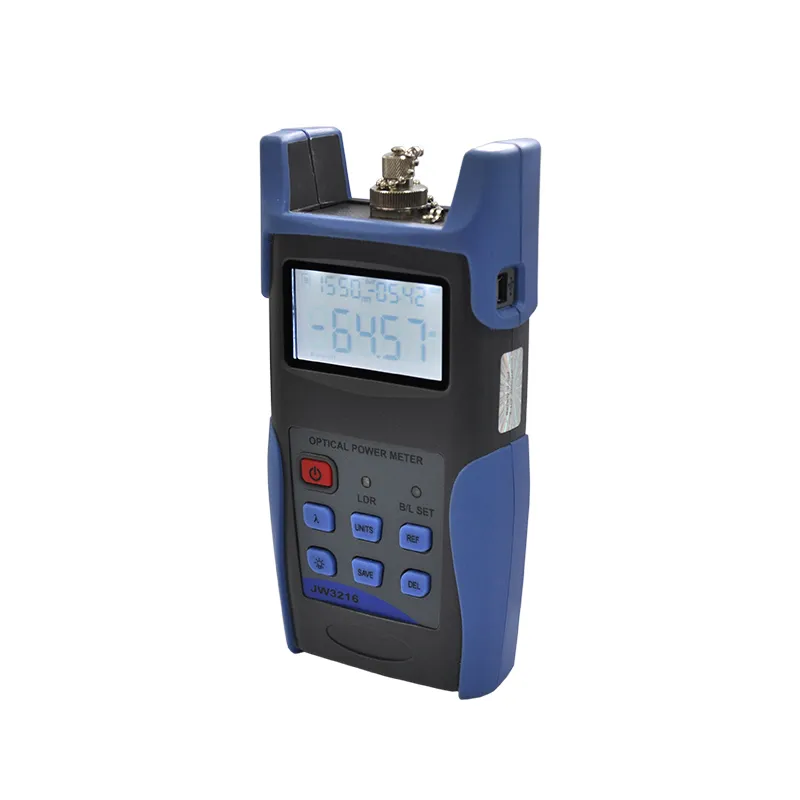

JW3216

Handheld Optical Power Meter

Precision and efficiency are necessary in fiber optic network operations, where reliable tools have an important role in maintaining performance. Designed with these demands in mind, this handheld optical power meter combines advanced features and an ergonomic design, making it ideal for network operators, installation teams, research institutions, and component manufacturers. Built for durability and ease of use, it offers a comprehensive set of functionalities to streamline testing and data management across various applications.

Request a Quote
Features
  • Supports automatic wavelength identification for precise measurements.
  • Detects signal frequencies, enabling advanced diagnostics.
  • Intelligent backlight control enhances visibility in any lighting condition.
  • Provides a large storage capacity to save and analyze test data.
  • Operates with power adapters, standard batteries, or rechargeable batteries for field flexibility.
  • Enables seamless data transfer through USB communication.
  • Includes a user-friendly interface for intuitive operation and quick navigation.
Specifications
Model JW3216
Calibration Wavelength 850/1300/1310/1490/1550/1625nm
Detector Type InGaAs/Si
Measurement Range -70 to +6dBm (A), -50 to +26dBm (C)
Uncertainty ±0.15dB (3.5%)
Linearity () ±0.02dB
Display Resolution (dB) 0.01dB
Frequency Identification 270Hz/330Hz/1kHz/2kHz
Measurement Wavelength 850/1300/1310/1490/1550/1625nm
Date Storage 1000 records
Communication Interface USB
Optical Connector Type FC/SC/ST
Power Supply 3*AA 1.5V alkaline batteries
Power Supply Adapter 5V
Battery Operating Time 200h
Operating Temperature -10 to +60℃
Storage Temperature -25 to +70℃
Dimensions 175×90×44.5mm
