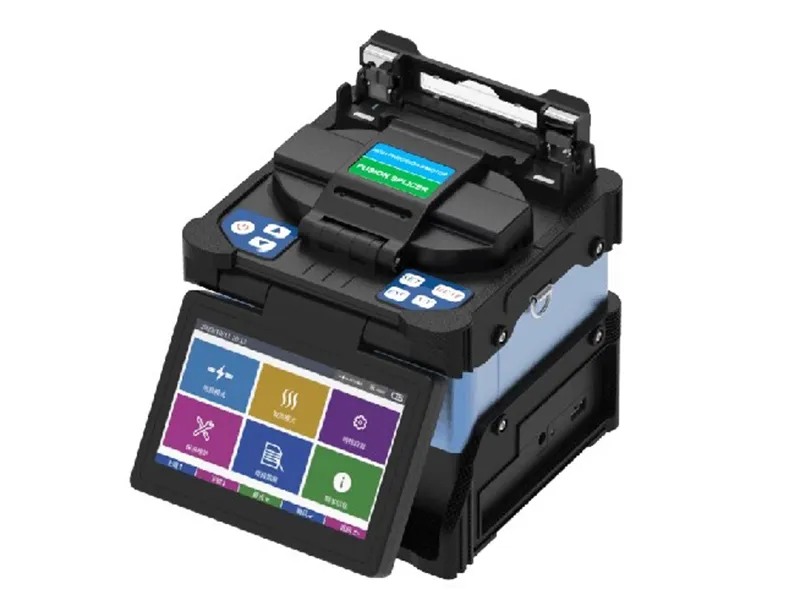

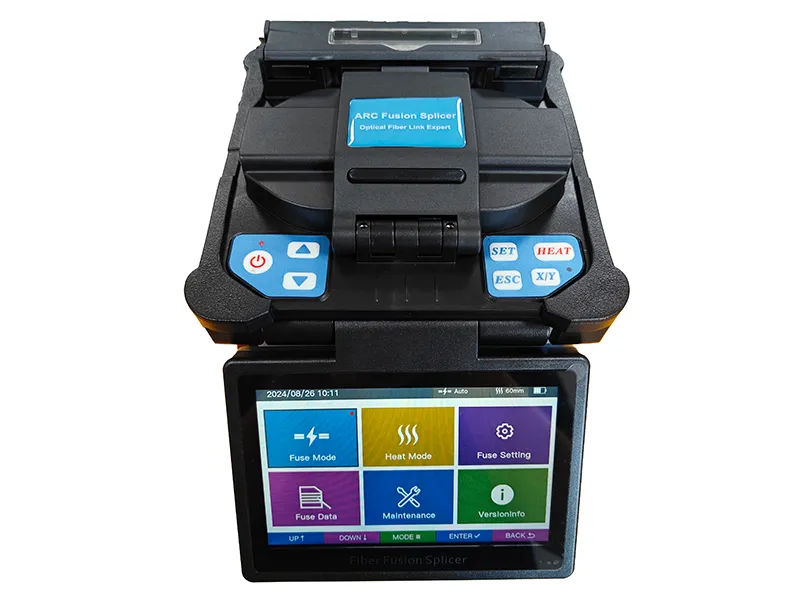

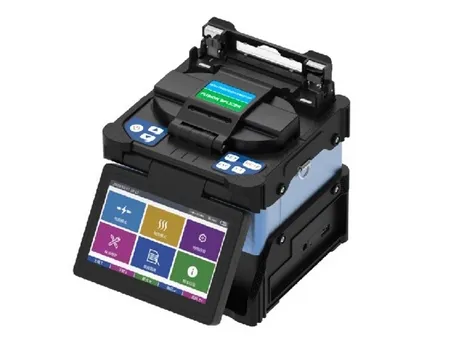

JW4108
PRO Optical Fusion Splicer with 5-inch LCD Touch Screen
Request a Quote
-
| CPU | Industrial grade dual CPU (quad core) |
| Fiber Alignment | Core and cladding alignment, automatic focus |
| Applicable Fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), BIF/UBIF(G.657) |
| Fiber Diameter | Cladding: 80 to 150μm Coating: 100μm to 3mm |
| Cutting Length | 5 to 16mm |
| Alignment Mode | Manual/automatic focus |
| Splicing/Heating Mode | A variety of splicing and heating modes is preset, can be customized |
| Average Splicing Loss | 0.02dB (SM), 0.04dB (MM), 0.04dB (DSF), 0.04dB (NZDSF) |
| Fusion Splicing Time | 6 seconds |
| Heating Time | 15 seconds |
| Storage | 10000 groups |
| Magnification | 380 times |
| Display | 5 inch digital LCD touch screen |
| Lighting | Built-in lights |
| Power Supply | Input: AC100-240V (50-60Hz) Output: DC10 to 13.5V |
| External Interfaces | DC adapter, USB |
| Pulling Force Test | 1.96 to 2.25N |
| Heat-Shrinkable Tube | 10 to 60mm |
| Battery Life | 9000mAh (splicing and heating cycles: 300 times) |
| Electrode Life | 3000 to 5000 times (recommended) |
| Communication Interface | USB port for software upgrading, ecords exporting |
| Operating Environment | Altitude: 0 to 5000m Wind speed: 15m/s Temperature: -10 to + 50℃ Relative humidity: 0 to 95%RH |
| Resistance | Dust/shock/water |
| Storage Conditions | Humidity: 0-95%, Temperature:- 20 to 50'C, Battery storage temperature: -20-30°C |
| Dimensions | 144×142×151mm |
| Weight | 2kg |
