JW8006

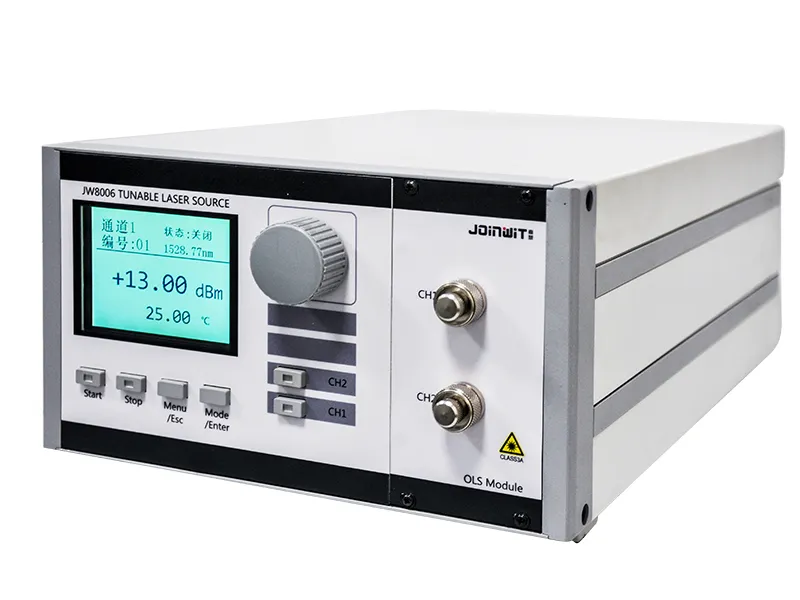

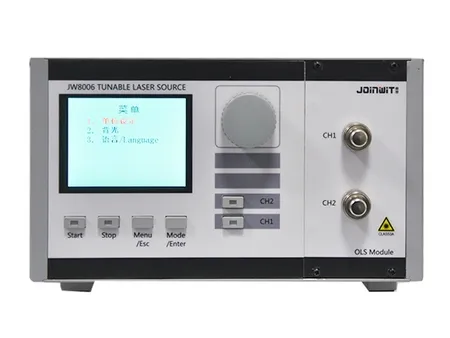

Benchtop Tunable Laser Source

This tunable laser source features high-performance components imported from international suppliers, offering high output optical power (10mW) and a narrow linewidth (1MHz). It provides continuous laser output with up to 89 ITU-T standard wavelengths in the C-band (50GHz spacing) and 64 wavelengths in the L-band. It integrates laser and control elements within its circuitry, enabling wavelength tuning and adjustable power settings via the RS232 protocol interface. This laser source is ideal for use in 40G/100G long-distance high-speed optical fiber communication systems and for testing C-band DWDM passive optical components and photodetectors. It is also suitable for DWDM system R&D, fiber lasers, fiber links, and optical device testing.

Request a Quote
Features
  • Supports up to 89 wavelengths
  • Wide tuning range for flexible applications
  • High optical power and stability
  • Modular benchtop design for ease of use
Specifications
Output Power C-band: ≤20mW
L-band: ≤10mW
Power Stability 0.05dB (room temperature, single wavelength)
0.5dB (room temperature, full wavelength)
Wavelength Tuning Range C-band: 1528.77/1563.86 (C17 C61)
L-band: 1554.94/1607.47 (C28 L65)
Number of Channel C-band: 89 channels
L-band: 64 channels
Channel Spacing C-band: 50GHz
L-band: 100GHz
Optical Connector Type FC/PC (or APC)

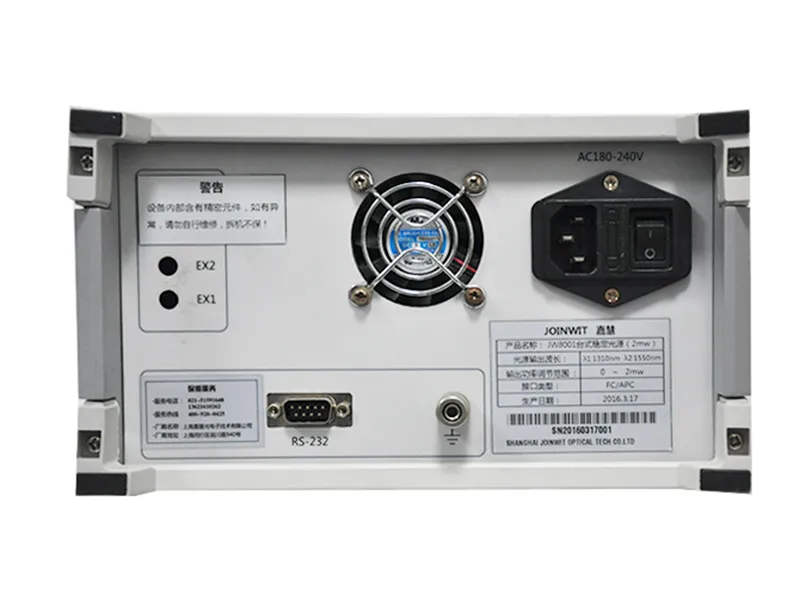

Communication Interface RS232
Display 3.5 inch TFT color screen
Operating Temperature -5 to +40℃
Storage Temperature -25 to +70℃
Power Supply AC 220V 50Hz
Dimensions 3U×235×380mm
