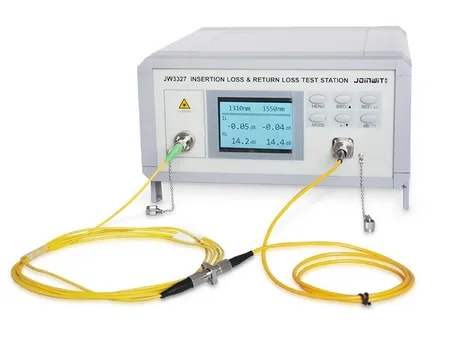

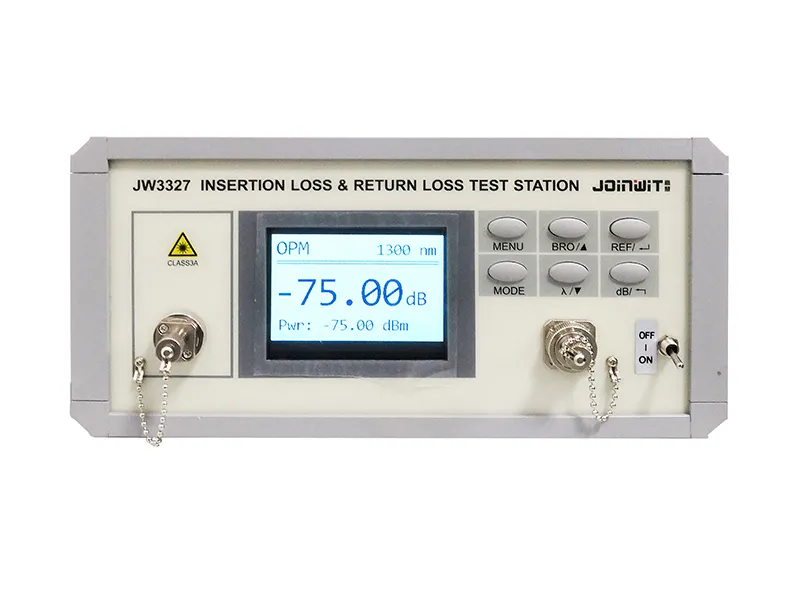

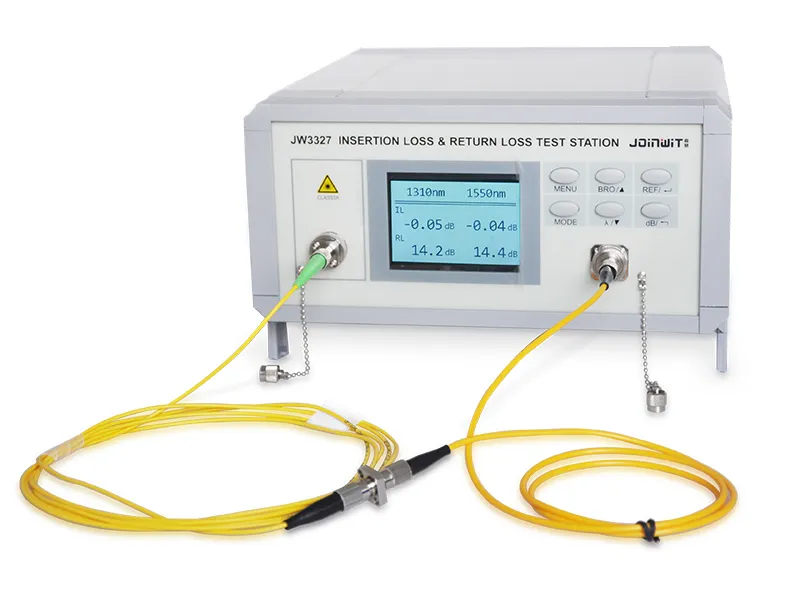

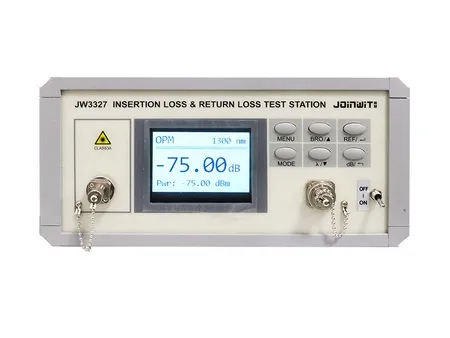

Insertion Loss & Return Loss Meter

Fiber optic test platform for measuring insertion loss and return loss of fiber optic cables

This precision optical testing instrument has been developed based on the company’s extensive experience in manufacturing and testing passive optical components and optical communication instruments. It is widely used for testing fiber optic cables and passive optical components, serving as an essential tool for manufacturers.

Request a Quote
Features
  • Built-in high-stability light source
  • Large color screen display
  • Customizable test thresholds via the menu
  • Simultaneous dual-wavelength IL & RL testing
  • Supports multiple fiber interface conversions
  • Threshold settings with red indicators for out-of-spec results

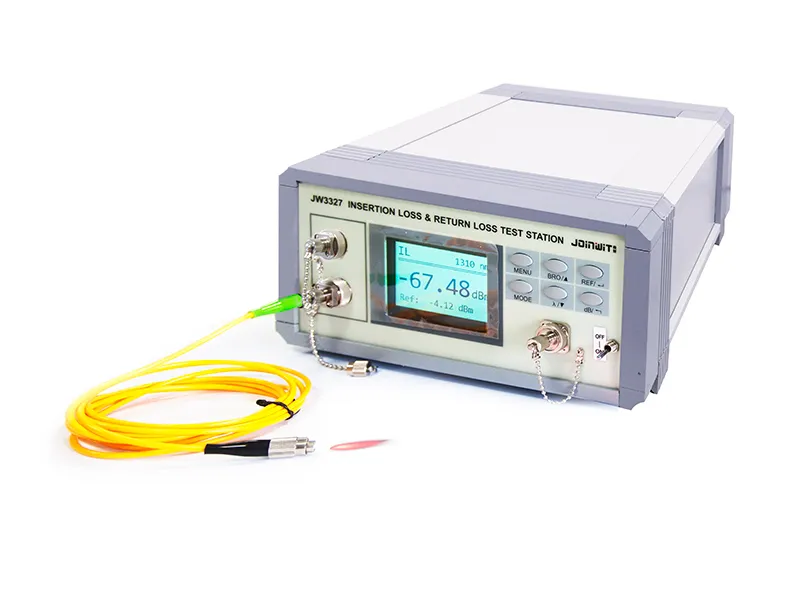

  • Built-in red light functionality to quickly identify jumper cable ends, improving testing efficiency
  • Optional 850nm wavelength for multimode jumper cable insertion loss testing
Specifications
Model JW3327A JW3327B
Return Loss (RL)
Single Mode Multimode
Optical Wavelength 1310/1550nm (±10nm) 850/1300nm (±10nm)
Fiber Type 9/2025 50/125 or 62.5/125
Output Power ≥-5dBm ≥-28dBm
Output Power Stability ±0.015dB (15min@25℃) ±0.05dB (15min@25℃)
Optical Connector Type FC/APC
Measurement Range 0 to 75dB
Display Resolution 0.1dB
Insertion Loss (IL)
Detector Type InGaAs 2.0
Wavelength Range 800 to 1700nm
Calibration Wavelength 850/1300/1310/1490/1550/1625nm
Measurement Range +3 to -75dBm +3 to -70dBm
Insertion Loss Uncertainty ±0.05dB ±0.1dB
Insertion Loss Stability ±0.01dB ±0.03dB
Power Uncertainty 0.25dB (+3 to -55dBm)
Display Resolution 0.01dB
General
Display 3.5 inch TFT color screen
Communication Interface USB2.0/RS232/wireless communication (optional)
Windows Operation System Win7 (32/64-bit), Win10 (32/64-bit)
Monitor Type Recommendation: 21-inch monitor with minimum resolution of 1600×900
Operating Temperature -5 to +40℃
Storage Temperature -25 to +70℃
Power Supply AC 220V
Dimensions 280×260×120mm
Single Fiber/Dual Fiber Insertion Loss & Return Loss Meter
JW86JW8301/JW830205 Single Fiber/Dual Fiber Insertion Loss & Return Loss Meter
Dual Fiber Non-Winding Insertion Loss & Return Loss Meter
JW8307-2IRL/JW18001-2IRL Dual Fiber Non-Winding Insertion Loss & Return Loss Meter
Non-Winding Insertion Loss & Return Loss Meter
JW8307AL Non-Winding Insertion Loss & Return Loss Meter
Insertion Loss & Return Loss Meter
JW3327 Insertion Loss & Return Loss Meter
MPO Insertion Loss & Return Loss Test Platform

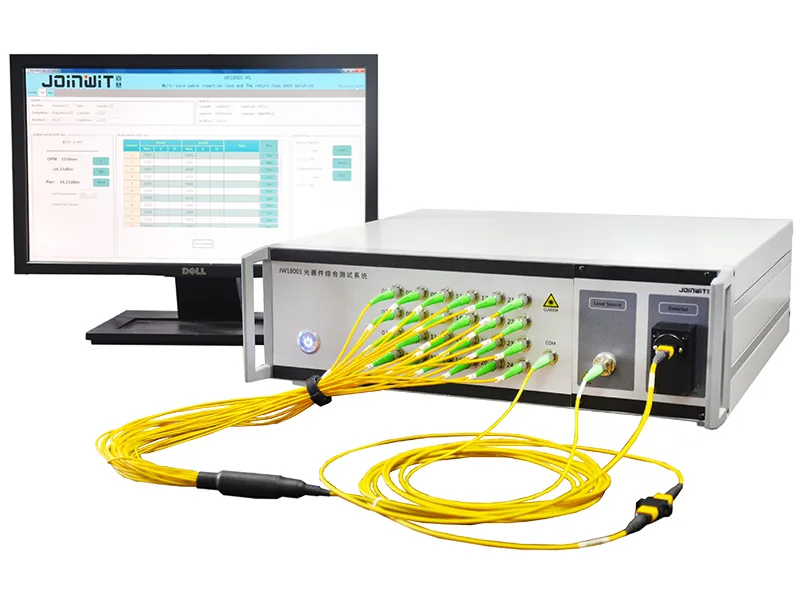

JW18001 MPO Insertion Loss & Return Loss Test Platform
